MOB AZURE – 20FT Expandable Modular Home

Deep Blue Exterior • Modern Comfort • Fast Deployment

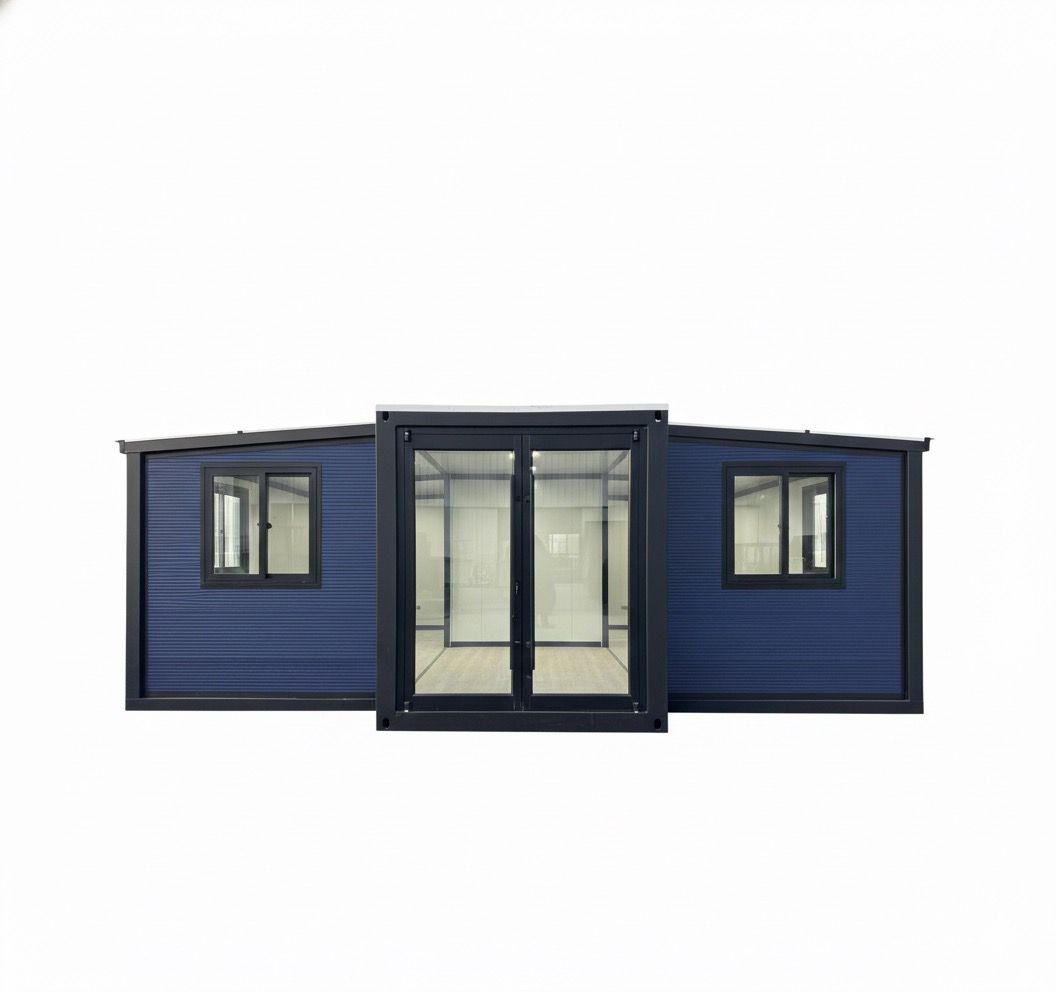

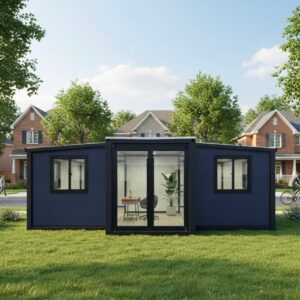

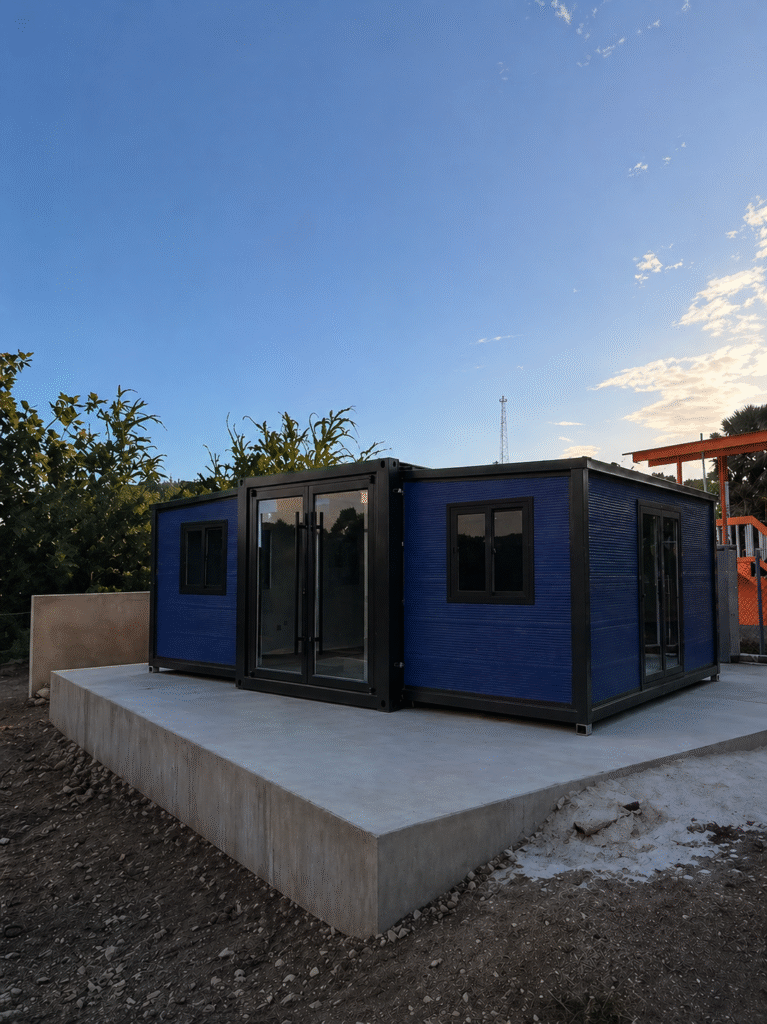

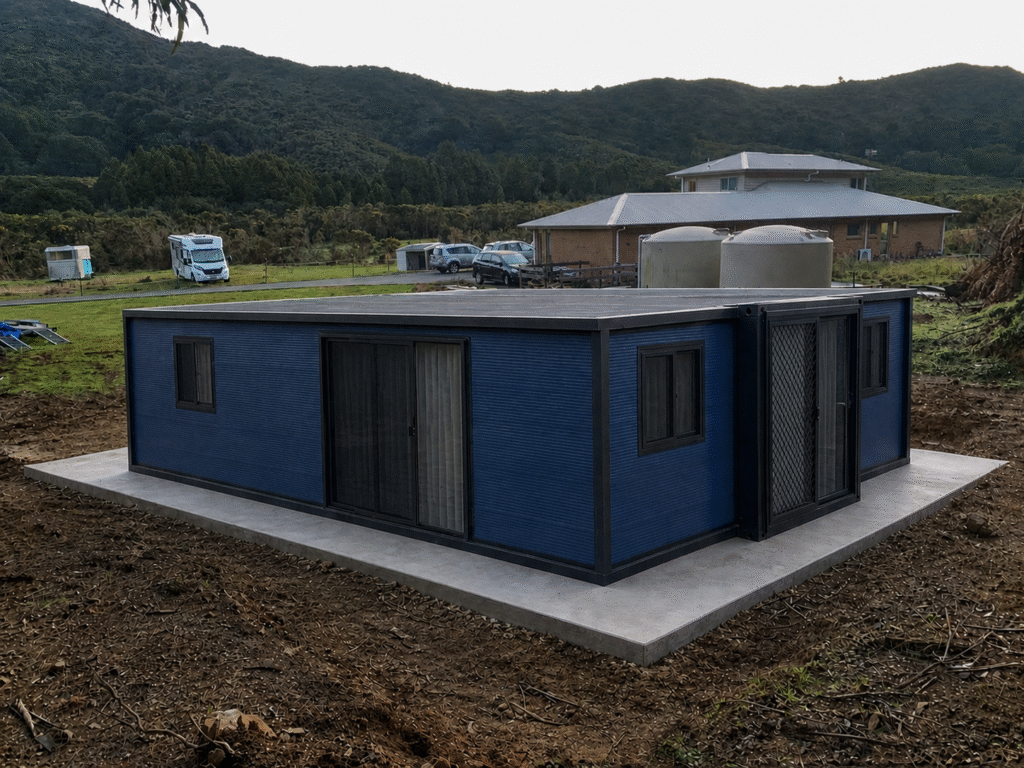

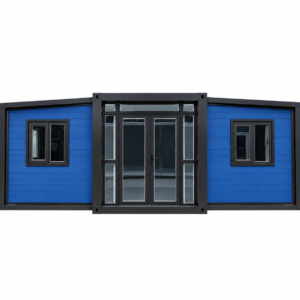

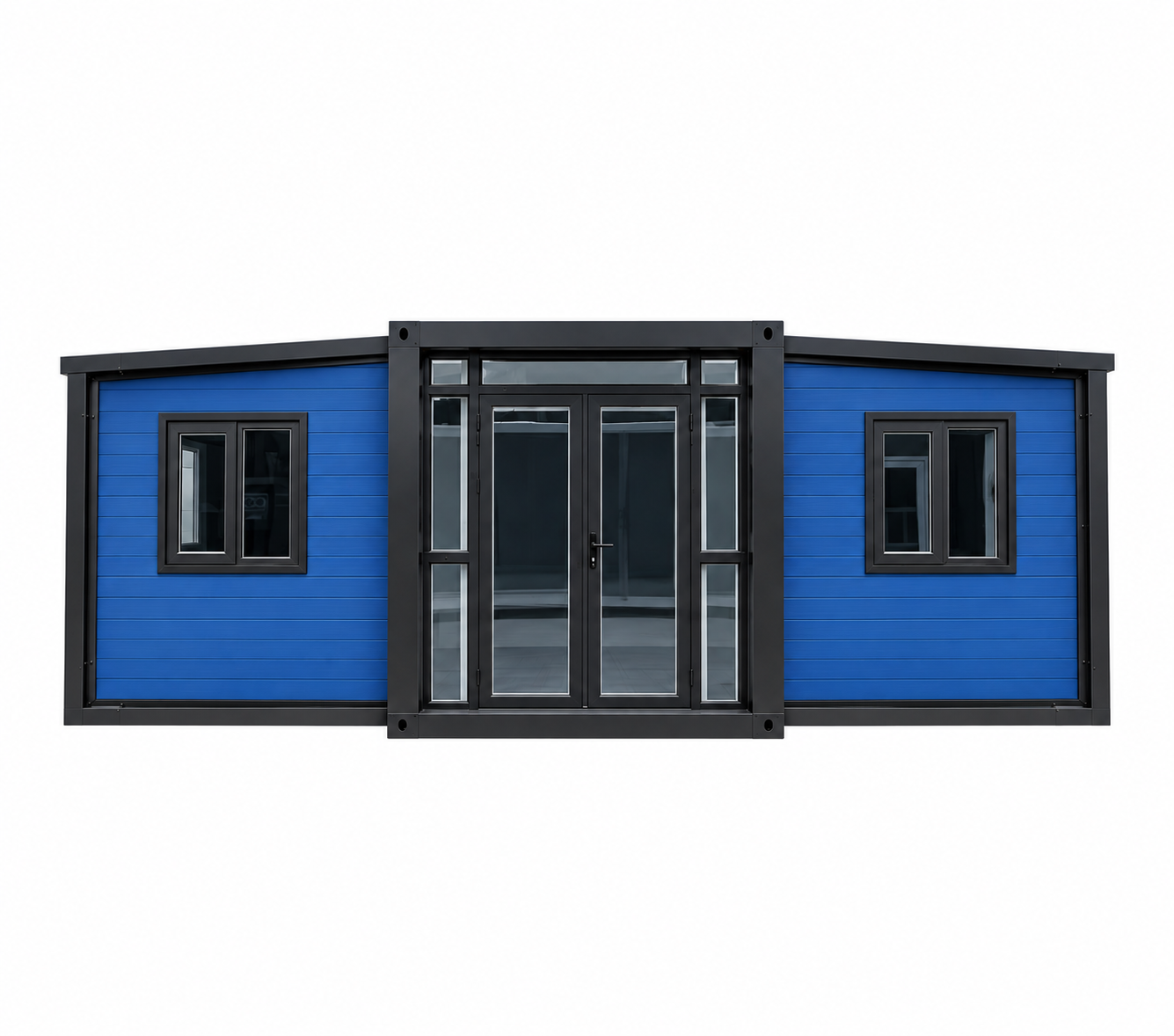

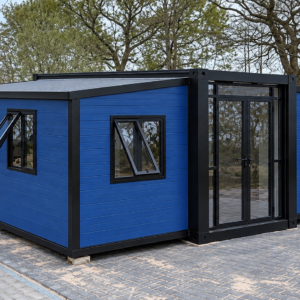

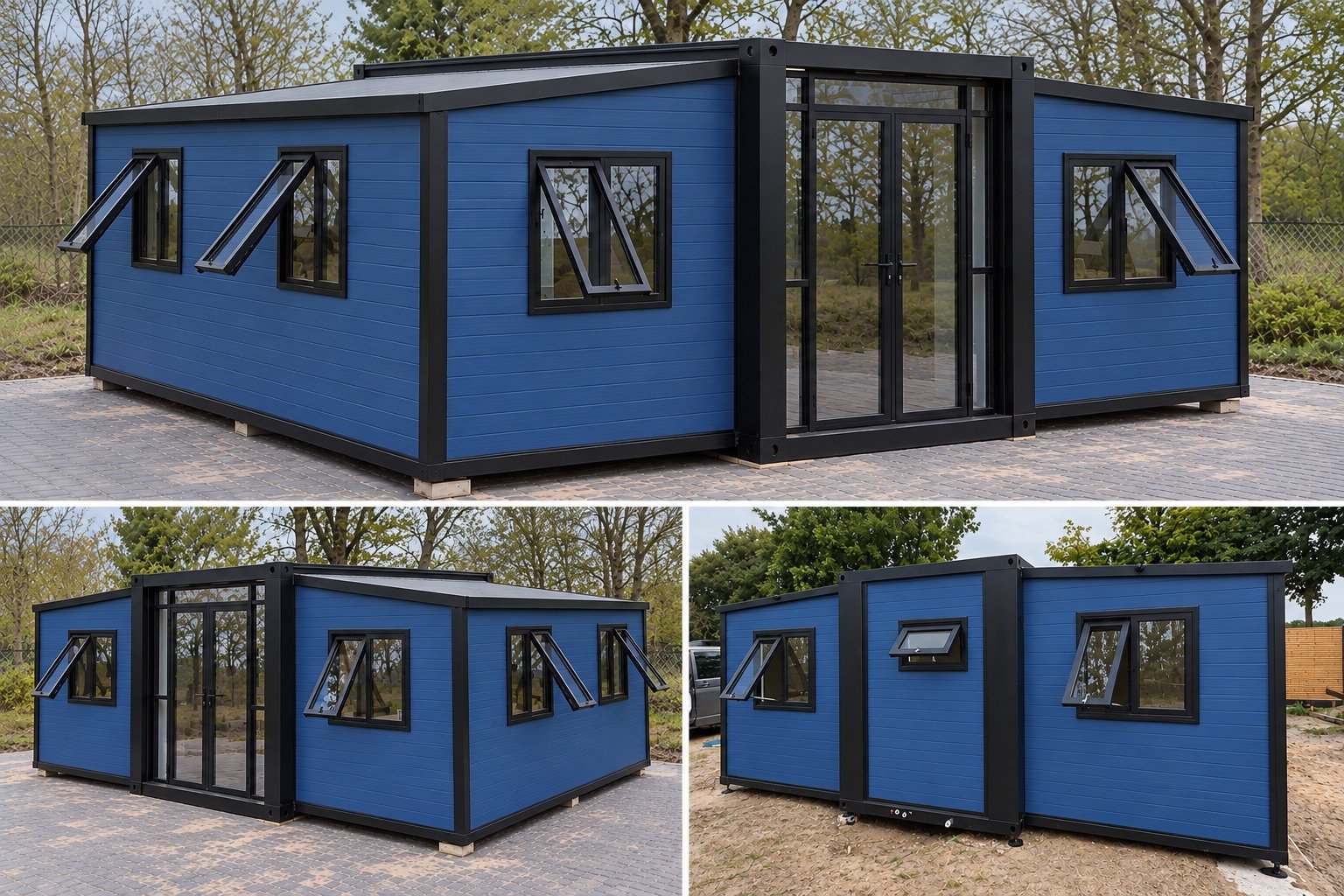

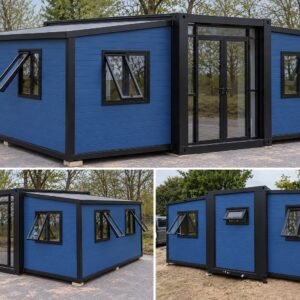

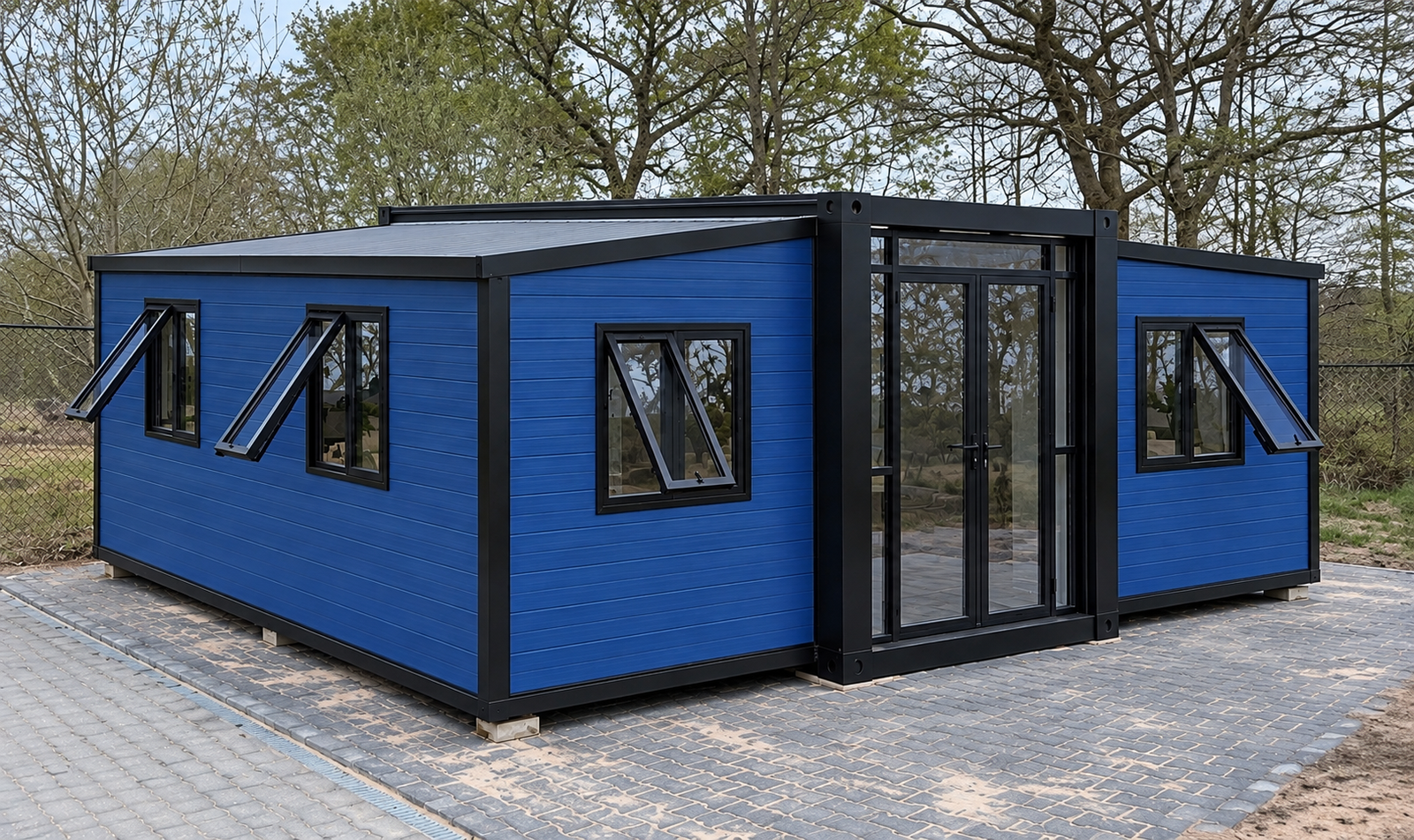

MOB AZURE is a bold and stylish 20FT expandable modular home crafted for customers who want a strong visual presence combined with functional living. Its signature deep Azure-blue exterior paired with black framing gives it a high-end designer look, making it perfect for resorts, backyard studios, offices, rentals, and long-term living spaces.

Delivered fully prefabricated with electrical, plumbing, insulation, flooring, and interior finishing already installed, MOB AZURE expands into a spacious home within hours – offering comfort, durability, and modern aesthetics in one compact structure.

📏 Dimensions (Feet & Inches + mm)

External Dimensions

• 20.73 ft (W) × 19.35 ft (L) × 8.14 ft (H)

• Width: 6320 mm → 20 ft 9 in

• Length: 5900 mm → 19 ft 4 in

• Height: 2480 mm → 8 ft 1 in

• Side Height: 2270 mm → 7 ft 5 in

Internal Dimensions

• 20.20 ft (W) × 18.24 ft (L) × 7.35 ft (H)

• Width: 6160 mm → 20 ft 2 in

• Length: 5560 mm → 18 ft 3 in

• Height: 2240 mm → 7 ft 4 in

• Side Height: 2150 mm → 7 ft 1 in

Folded Dimensions

• 7.21 ft (W) × 19.35 ft (L) × 8.14 ft (H)

• Width: 2200 mm → 7 ft 2 in

• Length: 5900 mm → 19 ft 4 in

• Height: 2480 mm → 8 ft 1 in

Total Weight

• Approx. 3,200 kg → 7,054 lbs

✨ Key Highlights

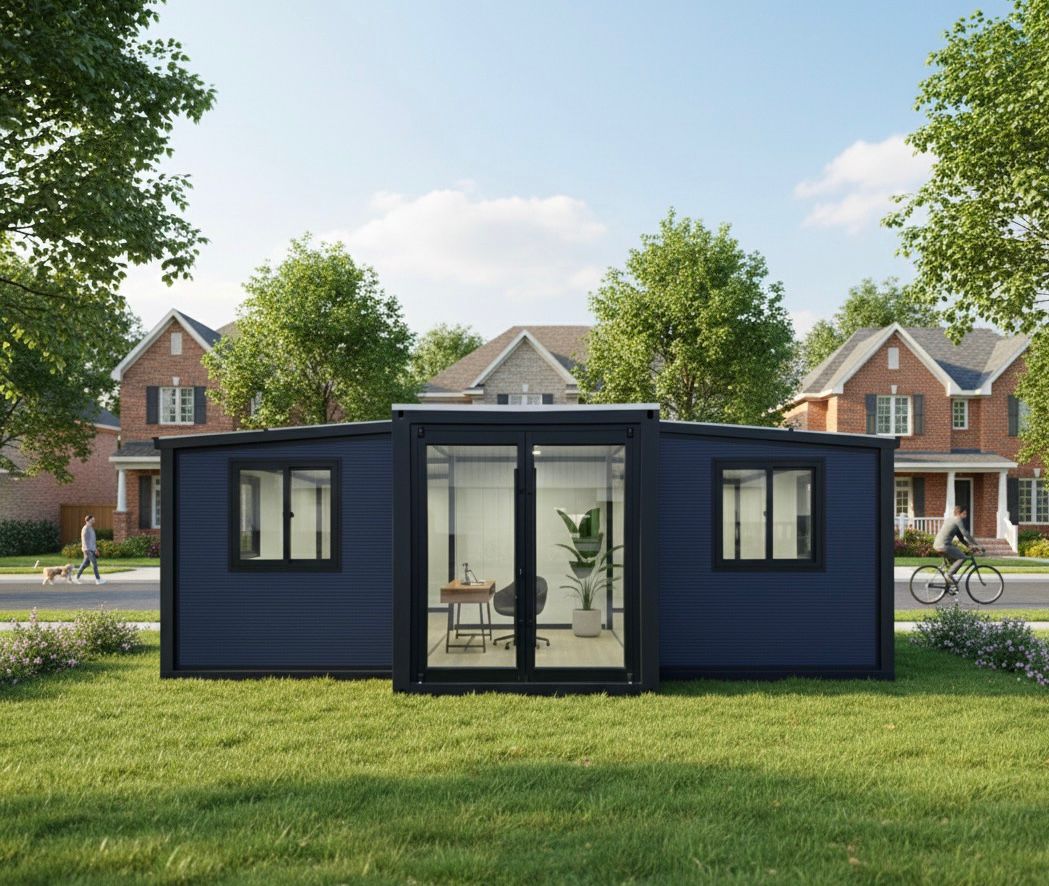

• Premium Azure-blue exterior with matte black frame

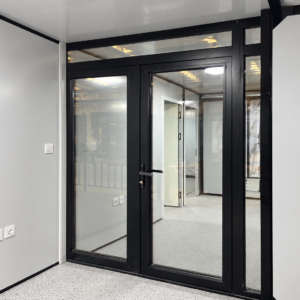

• Central full-glass sliding entrance for a bright, open feel

• Expands from a 20FT folded unit to a full living space in hours

• Pre-installed wiring, plumbing, flooring & ceiling

• Suitable for living units, offices, studios, Airbnb, farm stays & commercial setups

• Built for long-term durability and energy efficiency

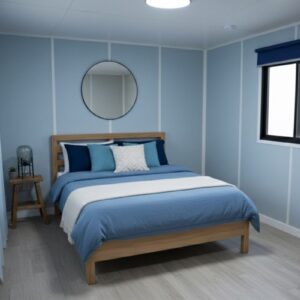

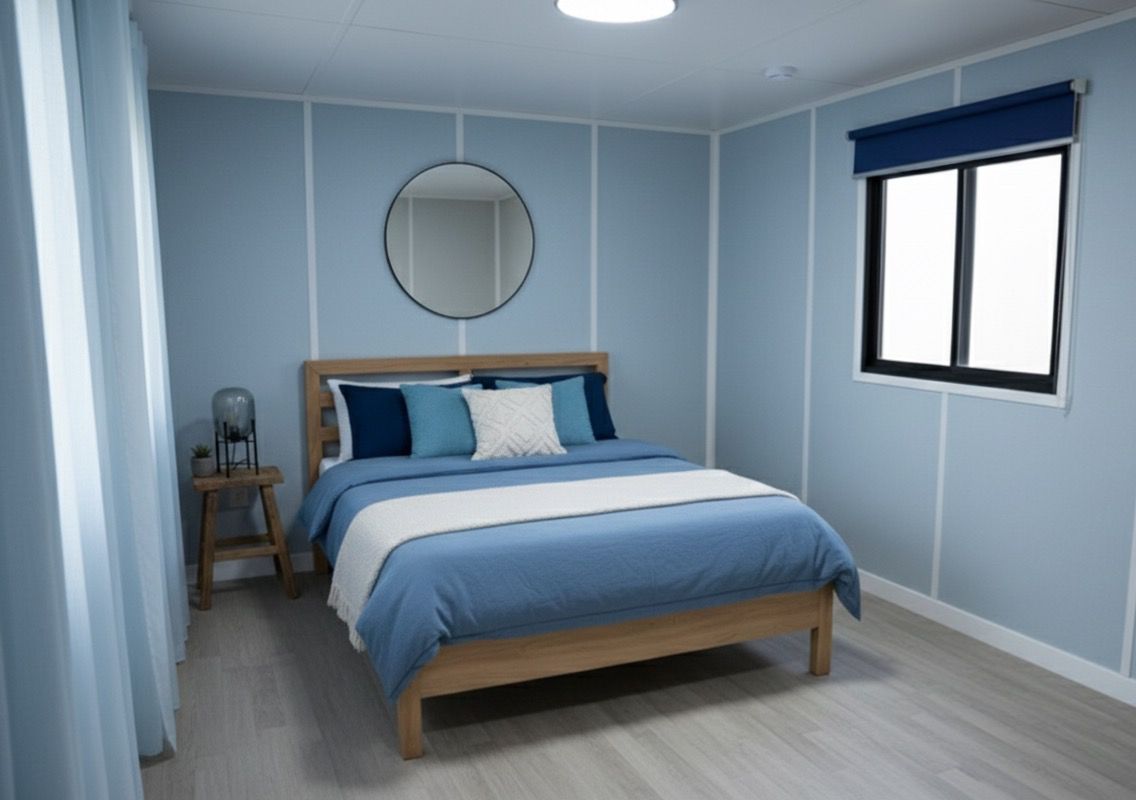

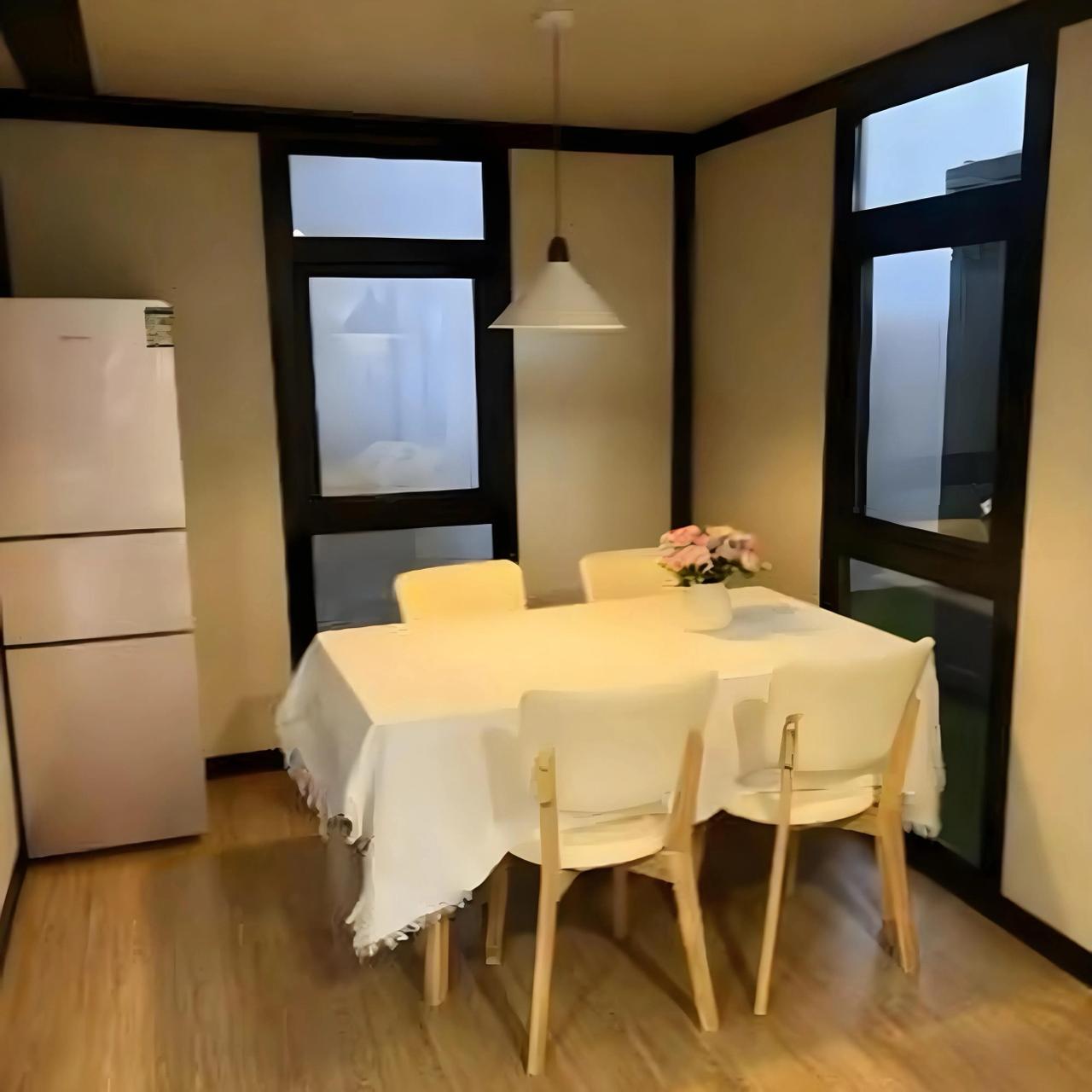

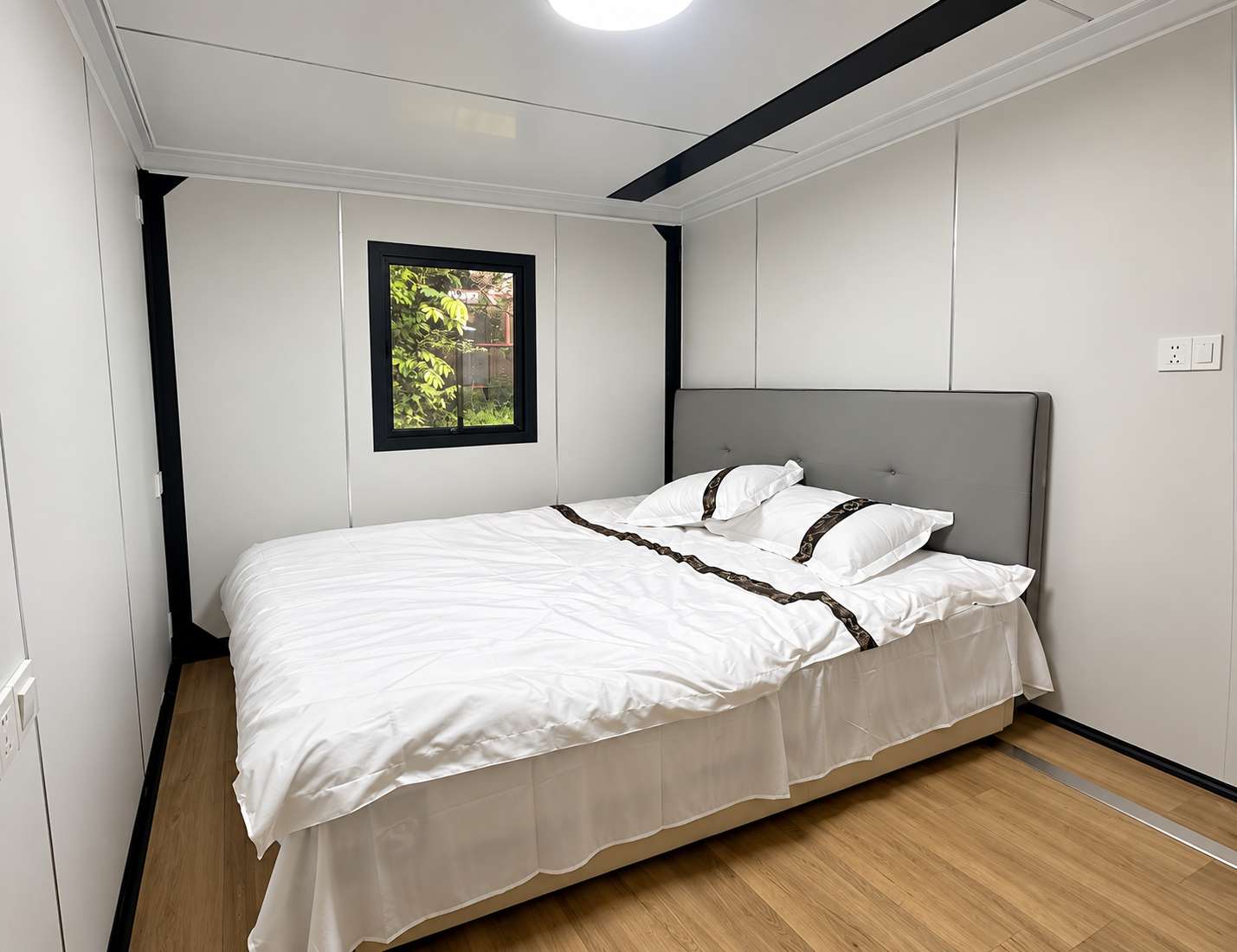

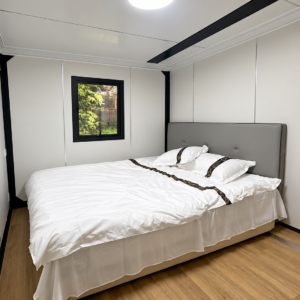

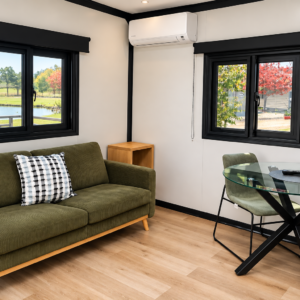

🏡 Interior Experience

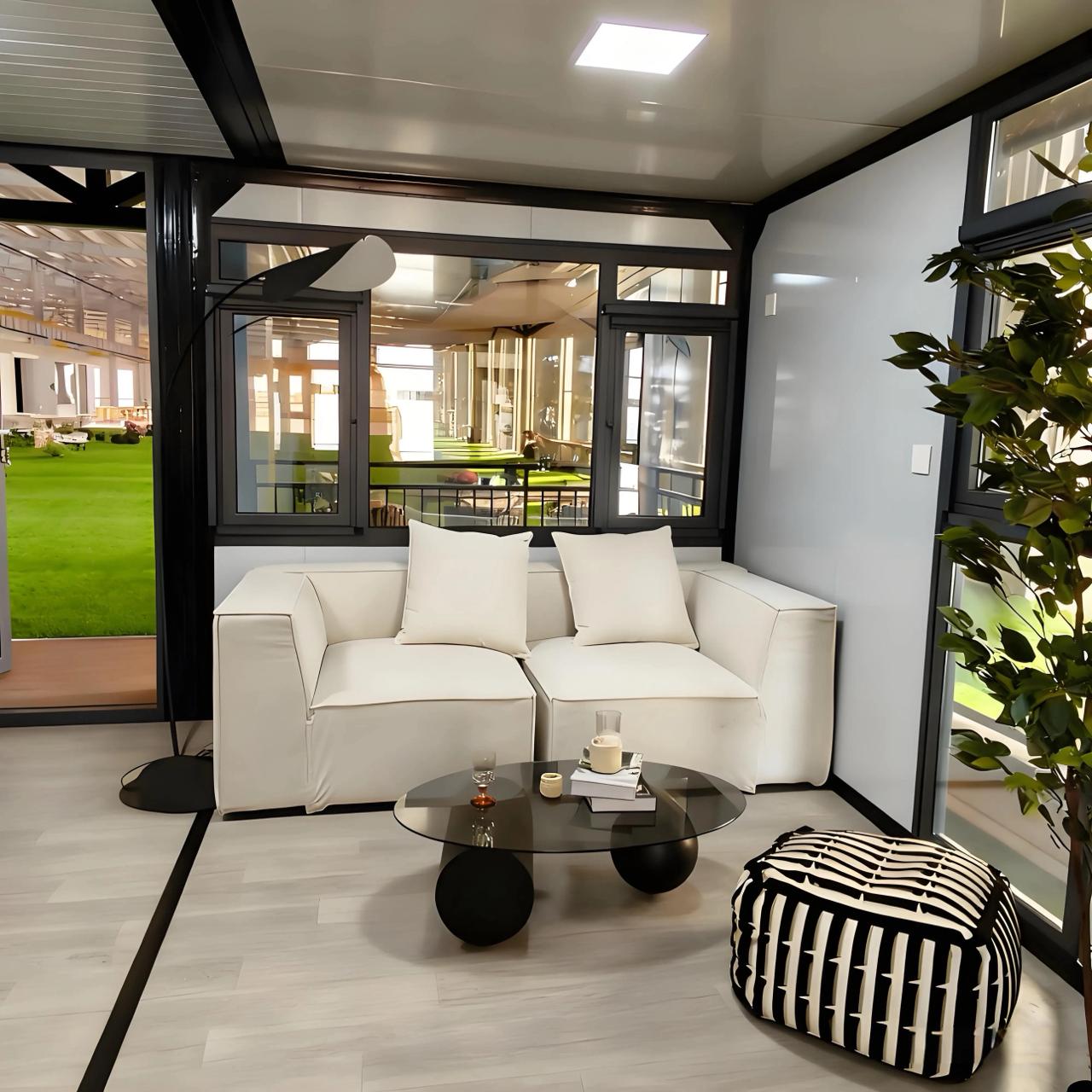

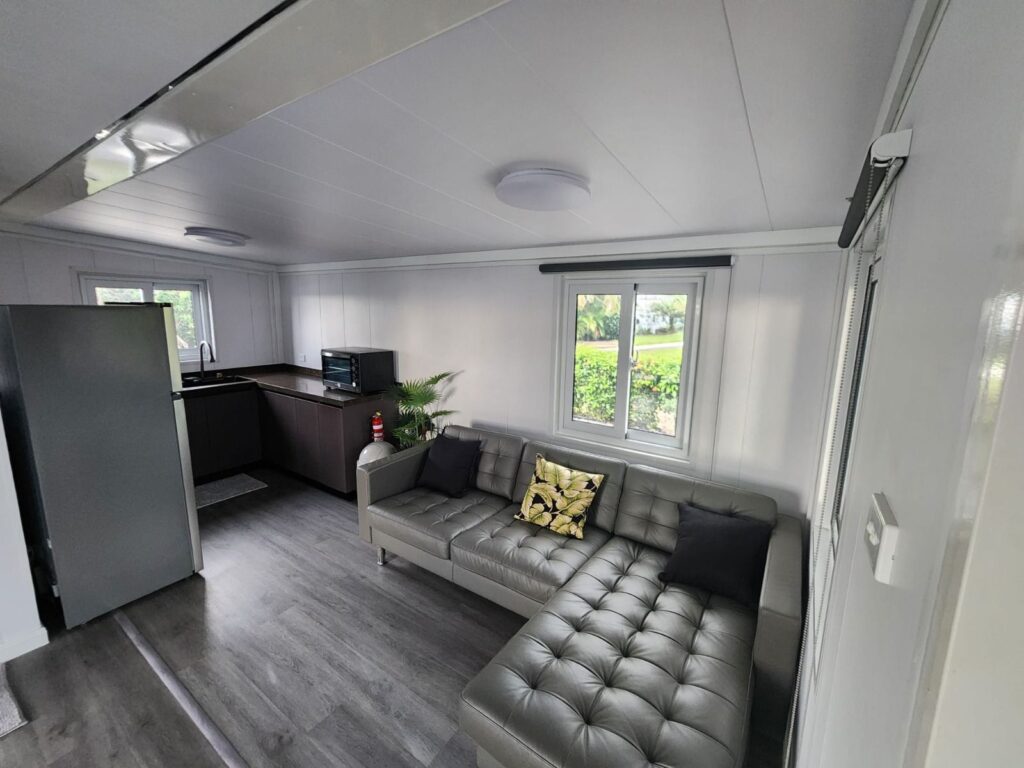

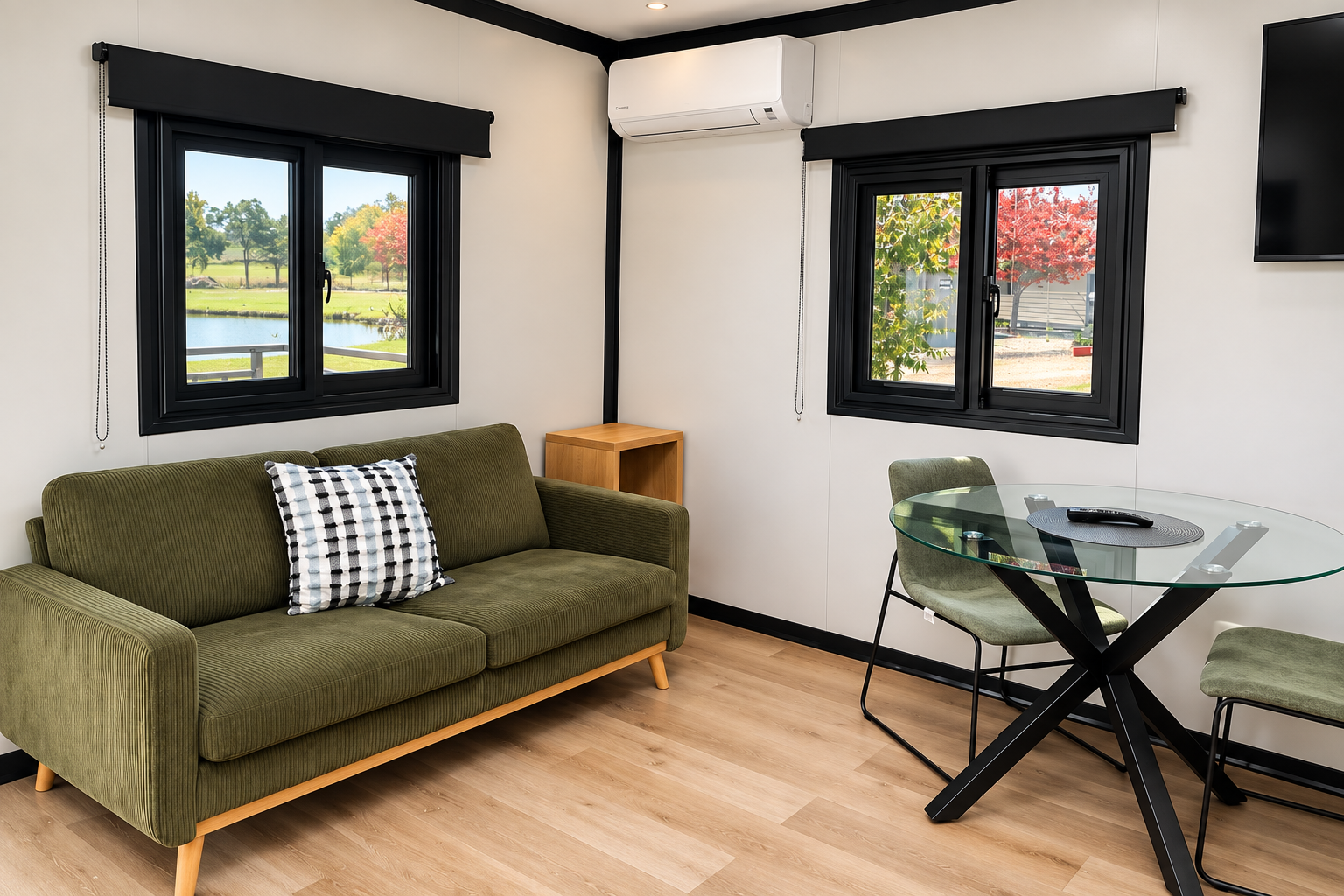

• Clean, open-plan interior ready for custom layouts

• Smooth white wall finish with modern lighting

• Bright, naturally lit space ideal for living or working

• Excellent for 1–3 bedroom configurations based on customer choice

🏗 Premium Exterior Construction

• Galvanized steel structural frame with protective undercoat.

• Cast-iron ISO 1161 compliant container pin holders.

• Double-side fiber-reinforced plastic exterior (3mm).

• Walls:

  • Standard: 75mm EPS + double side 0.5mm steel sandwich panel

  • Upgrade: 60mm EPS + 15mm outer cladding

• Cladding: High-density rigid polyurethane insulation with aluminum steel sheet.

• Fully weatherproof, corrosion-resistant, and built for long-term life.

🌡 Superior Insulation

• Double vacuum insulated glass windows (5mm + 12mm + 5mm)

• EPS + steel sandwich wall panels

• Glass-wool insulated roofing

• Energy-efficient heat and sound insulation

🏡 Internal Materials & Flooring

• Fiber-cement floorboard with PVC surface covering.

• Layered flooring system:

  • 15mm MgO/BULU structural board.

  • 2mm PVC vinyl finish.

  • Optional upgrade: 4mm SPC (Stone Plastic Composite) for premium durability.

• Fire-resistant, moisture-resistant, termite-proof.

🔌 Electrical System (USA Ready)

• High-grade wiring harness

• Pre-installed lights, switches & sockets

• Main wiring panel included

• Compatible with USA 110V electrical systems

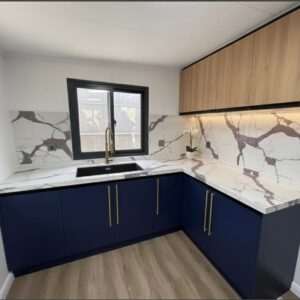

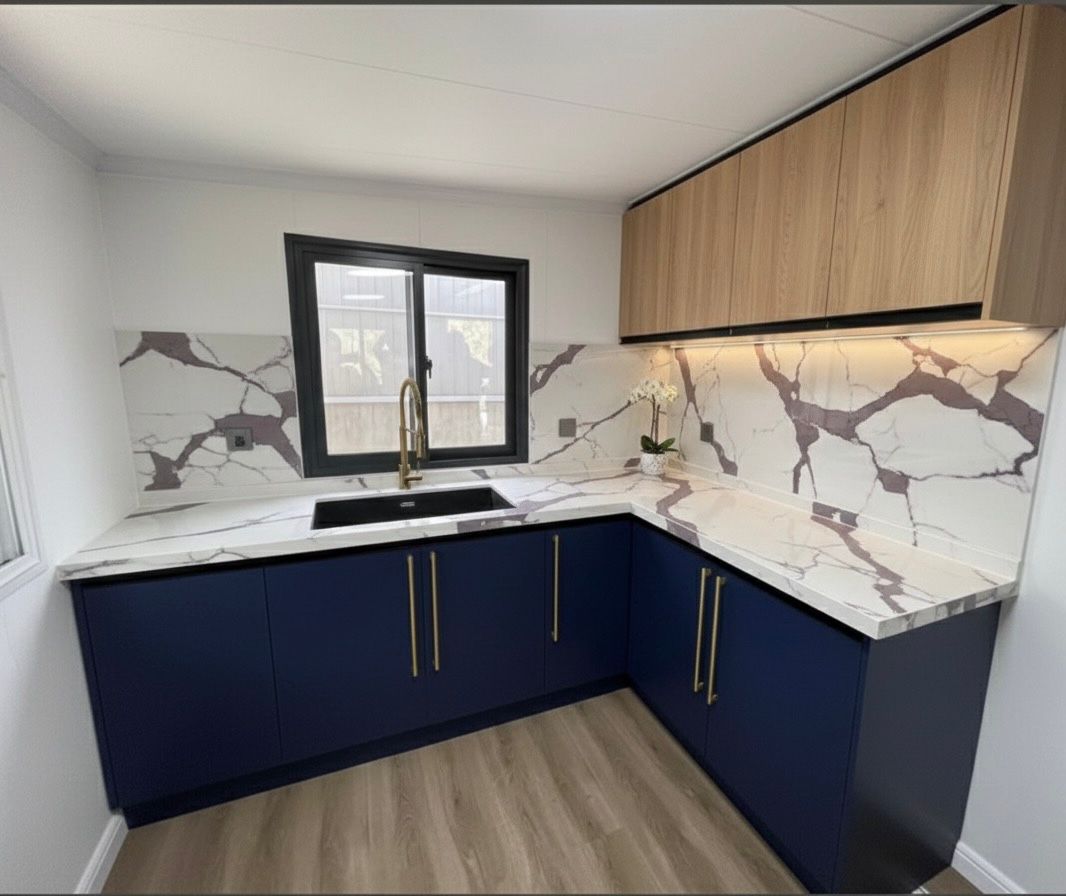

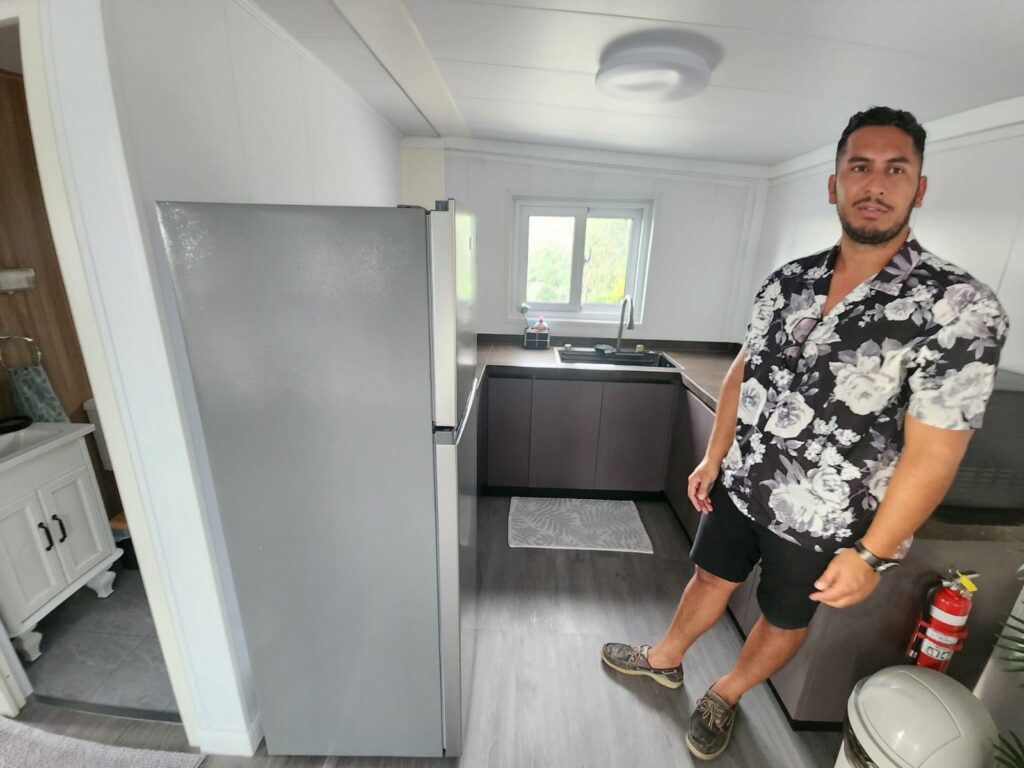

🍽️KITCHEN

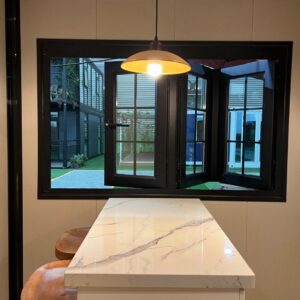

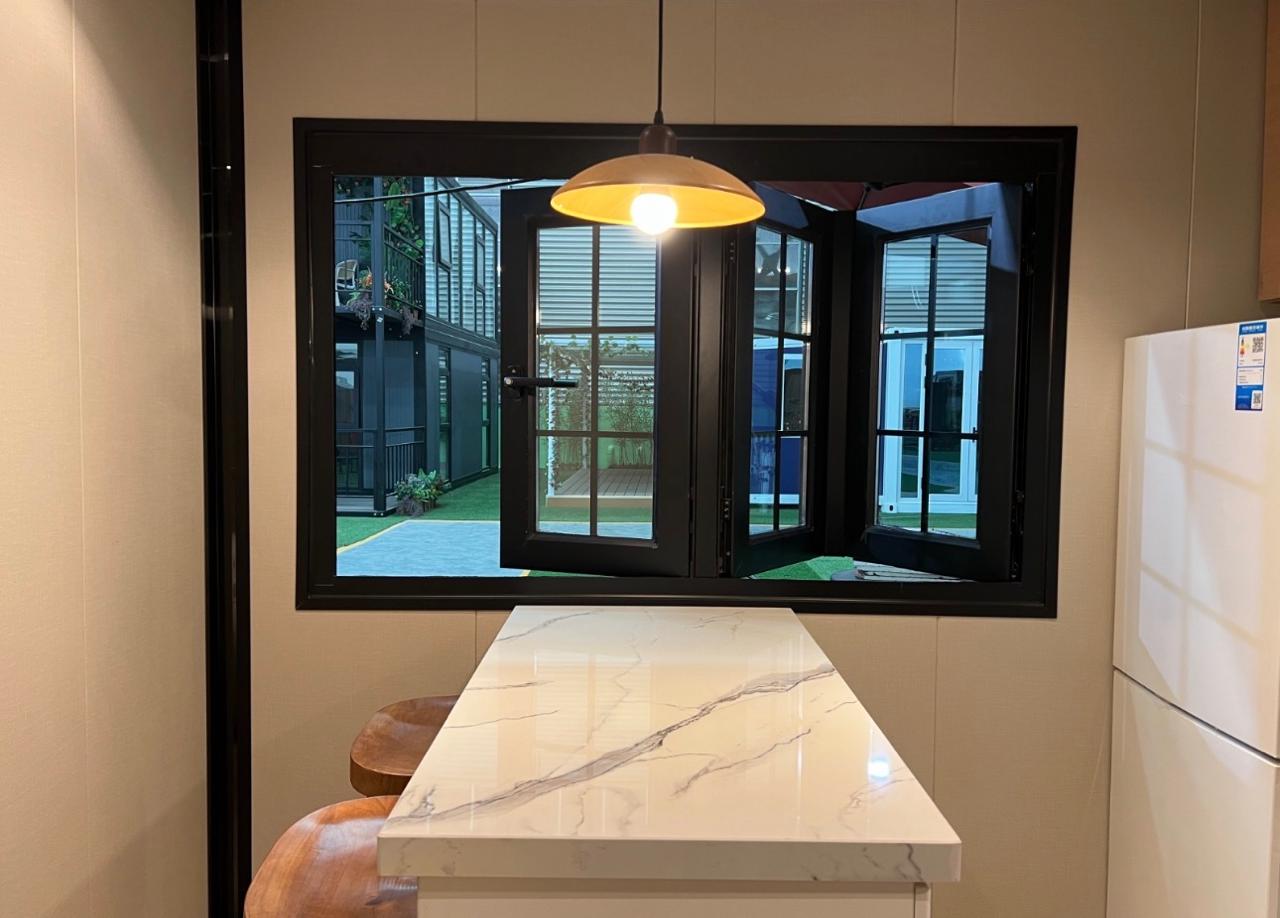

• Luxury 20mm Quartz engineered stone countertop.

• Sleek modular cabinetry with soft-close hinges.

• Overhead storage cupboards included.

• Double-bowl stainless steel sink with flip mixer (assembly may be required).

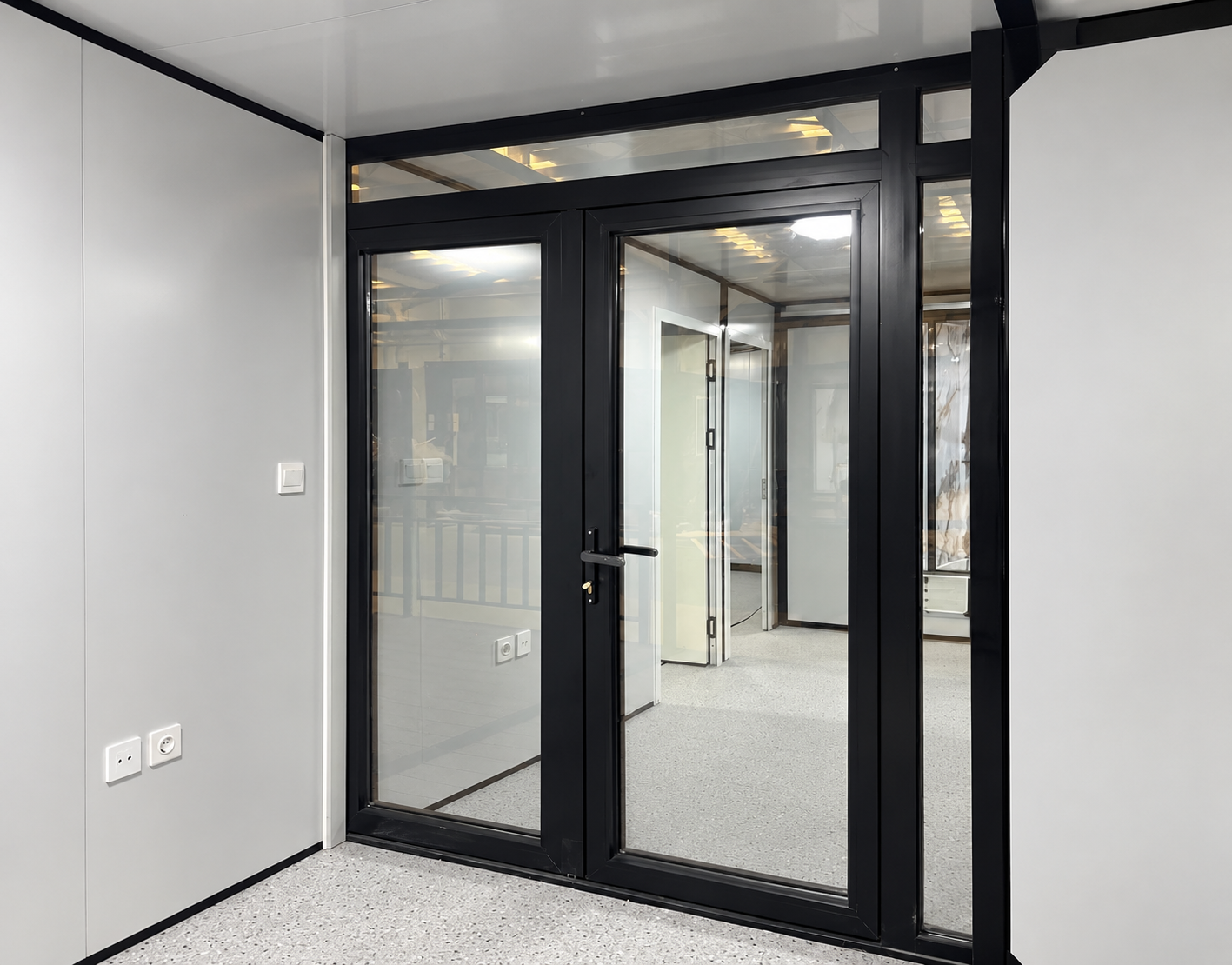

🚪 Doors & Windows

• Certified 3C high-performance windows.

• Double-sided vacuum insulated glass: 5mm + 12mm + 5mm.

• Thermal & acoustic insulation ensures a quieter, cooler interior.

• Aluminum alloy frame with reinforced rubber seals.

• Reduced AC electricity consumption due to high insulation quality.

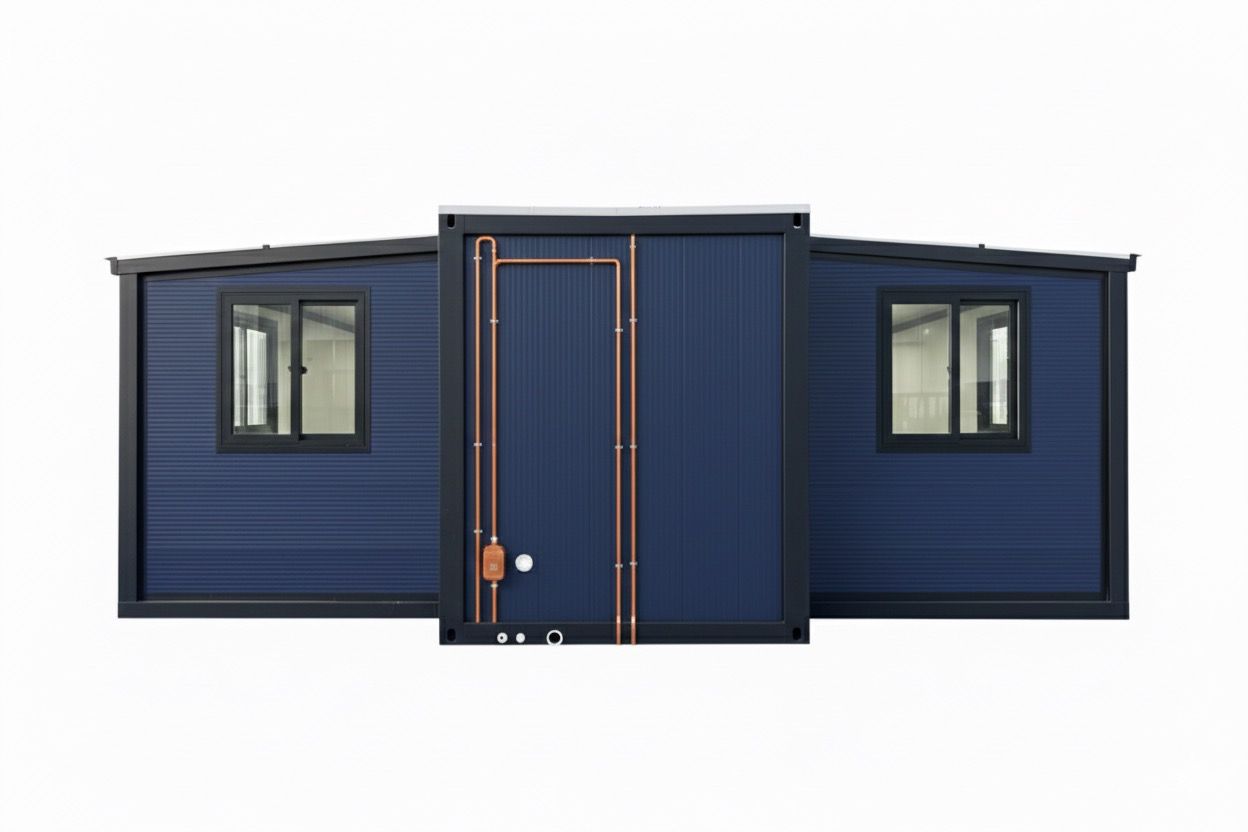

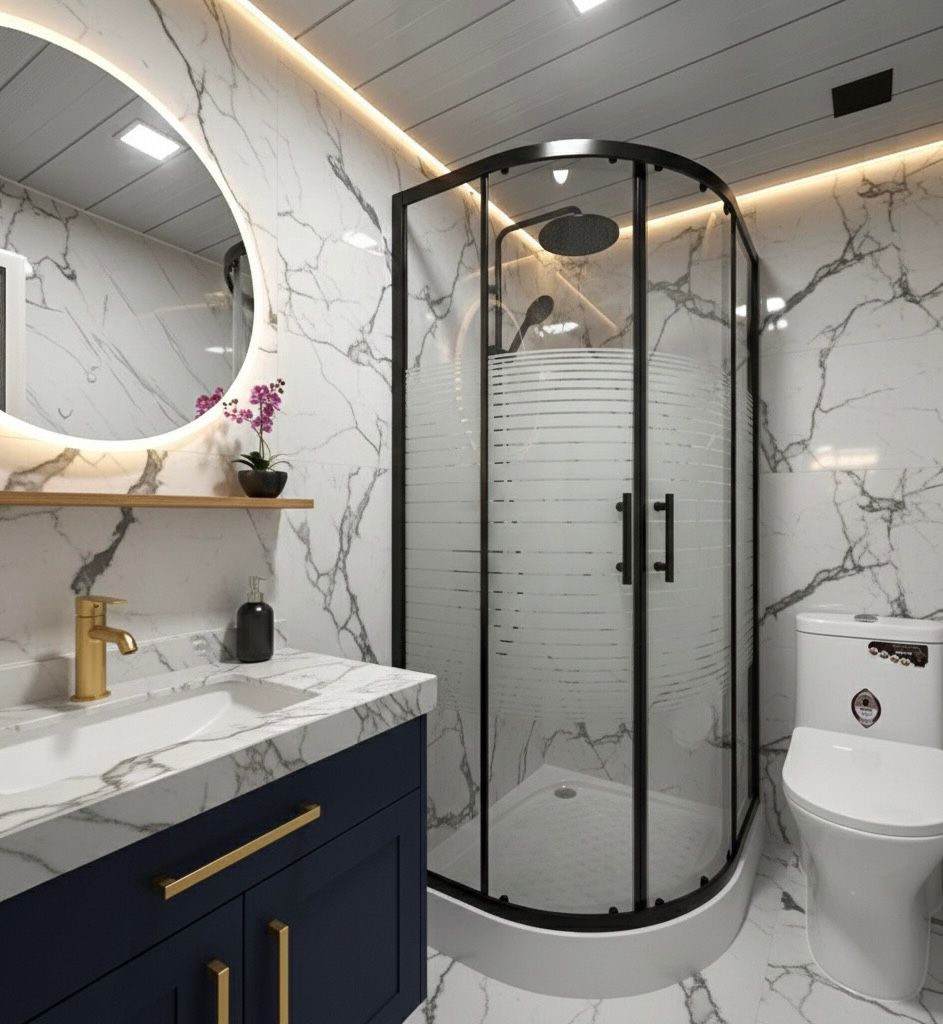

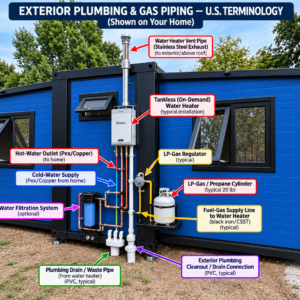

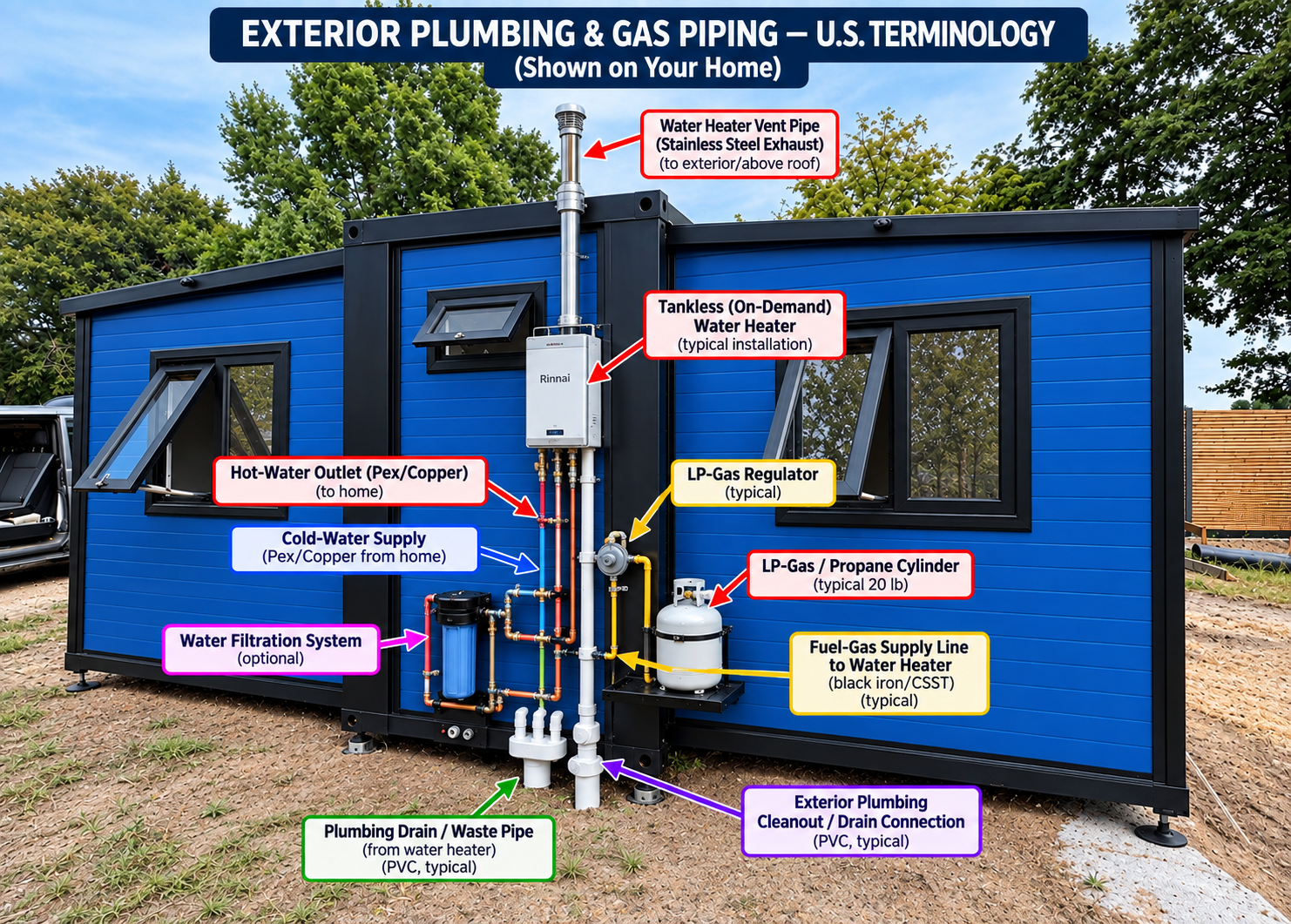

🚿 Plumbing System

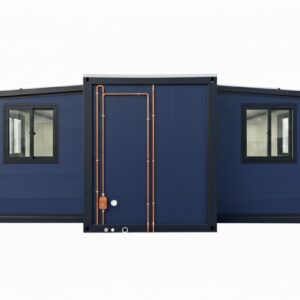

• All plumbing positioned on the exterior bathroom wall for easy maintenance.

• Hot & cold pre-plumbed inlets for:

  • Kitchen sink

  • Bathroom basin

  • Toilet

  • Shower

• Separate drain pipes for wastewater and greywater.

• Pre-plumbed 50mm PVC drainage to a single outlet.

• Ready for direct connection to USA plumbing systems.

📊 Engineering Performance

• Anti-earthquake rating: Level 8

• Wind resistance: 0.6 kN/m² (up to 120 km/h)

• Load Capacity:

  • Roof (middle): 120 kg/m²

  • Roof (slope): 100 kg/m²

  • Floor: 200 kg/m²

• Snow load:

  • Middle top: 1.2 kN/m²

  • Bevel top: 1.0 kN/m²

• Thermal conductivity: 0.05 – excellent insulation efficiency.

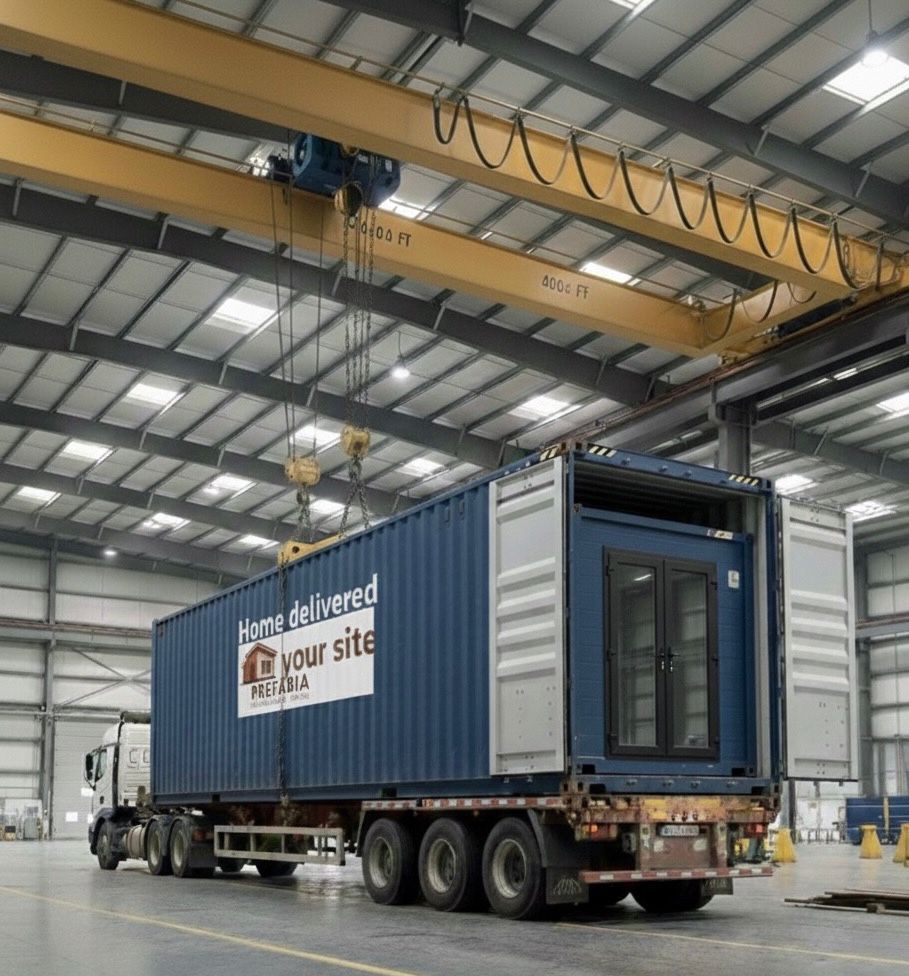

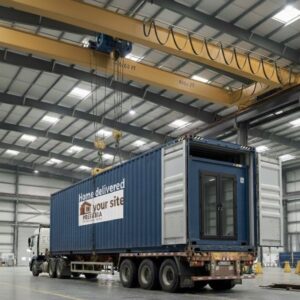

⚠️ Delivery, Unloading & Installation

• Delivery to your location is included.

• However, unloading and on-site installation must be arranged by the customer.

• A crane, forklift, or similar lifting equipment is required to safely unload the 20FT unit.

🛒 Order Your MOB  AZURE

1. Choose your layout (1–3 bedrooms)
2. Select available finishes
3. Contact customer care for any customizations
4. Place your order
5. Delivery to your location (customer handles unloading & installation)

A complete home — delivered fast and built exactly the way you need.

📞 Custom Layouts & Upgrades

For any custom changes — including layout modifications, extra bedrooms, flooring upgrades, window options, exterior cladding, or kitchen/bathroom upgrades — you must contact customer care for approval and pricing.
All customization requests are processed through our support team to ensure correct engineering, safety, and compatibility with the expandable structure.
