MOB CLAYDEN(20FT)

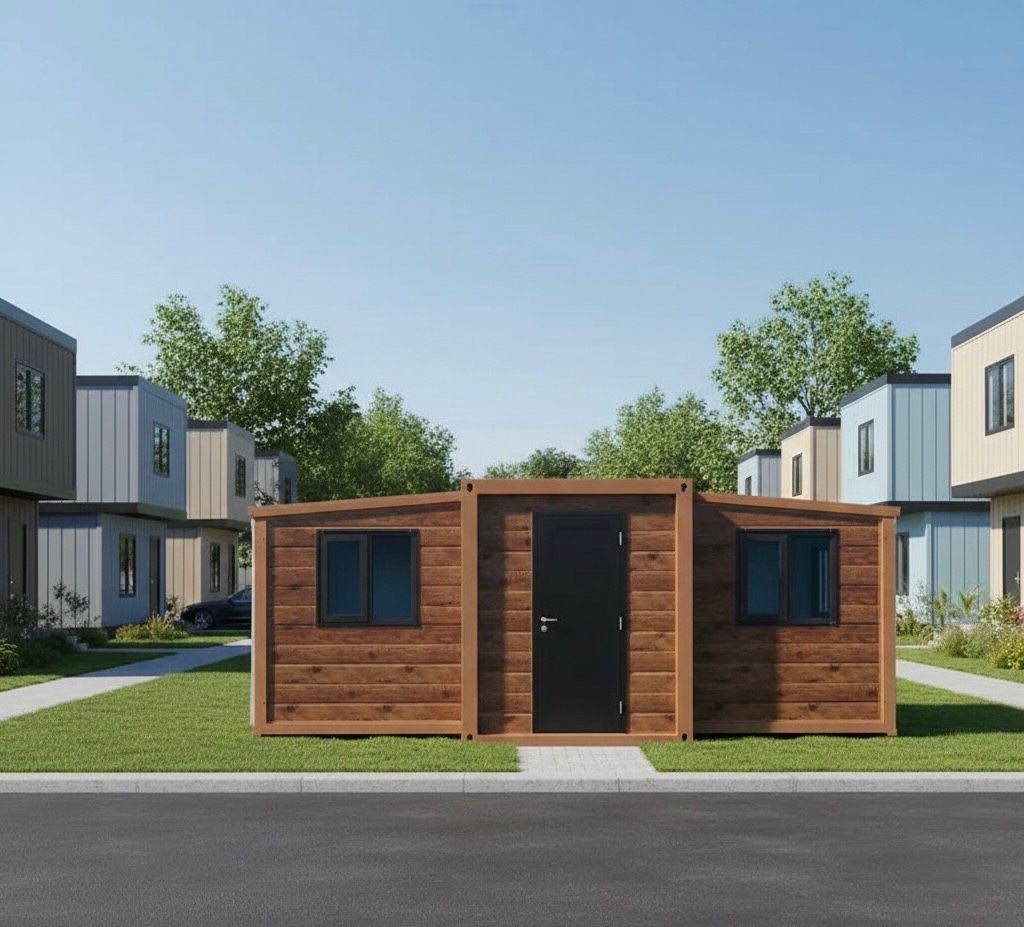

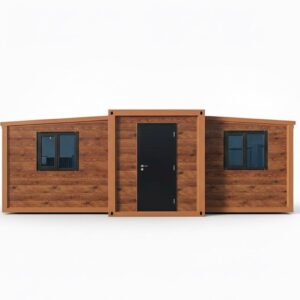

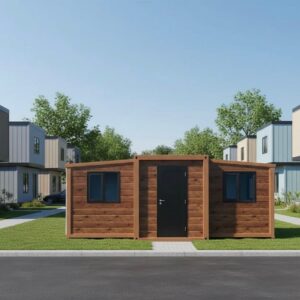

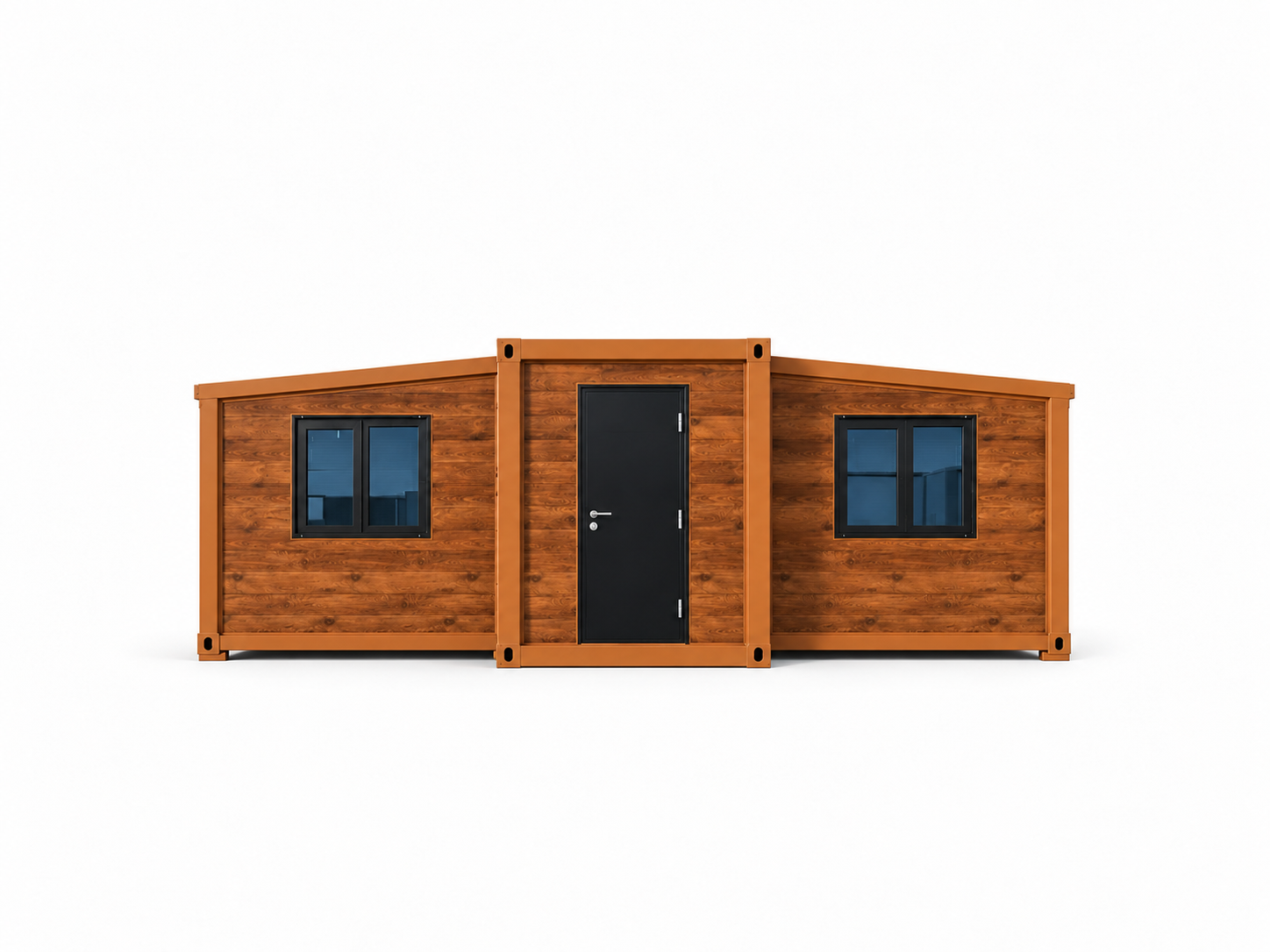

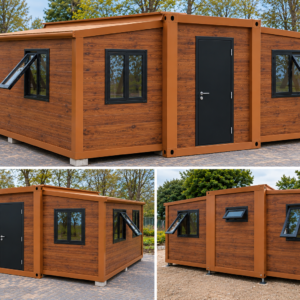

MOB CLAYDEN(20ft) – Luxury Expandable Modular Home

The MOB CLAYDEN is a next-generation expandable modular home designed for fast deployment, superior durability, and long-term comfort. Built with international-grade structural materials and factory-prefabricated precision, this home is ideal for residential living, commercial spaces, remote cabins, ADUs, offices, and disaster-relief housing.

Engineered to meet high structural and safety standards and optimized for USA electrical, plumbing & insulation expectations, MOB CLAYDEN offers the perfect blend of efficiency, style, and long-lasting performance.

📏 Dimensions (Feet & Inches + mm)

External Dimensions

• 20.73 ft (W) × 19.35 ft (L) × 8.14 ft (H)

• Width: 6320 mm → 20 ft 9 in

• Length: 5900 mm → 19 ft 4 in

• Height: 2480 mm → 8 ft 1 in

• Side Height: 2270 mm → 7 ft 5 in

Internal Dimensions

• 20.20 ft (W) × 18.24 ft (L) × 7.35 ft (H)

• Width: 6160 mm → 20 ft 2 in

• Length: 5560 mm → 18 ft 3 in

• Height: 2240 mm → 7 ft 4 in

• Side Height: 2150 mm → 7 ft 1 in

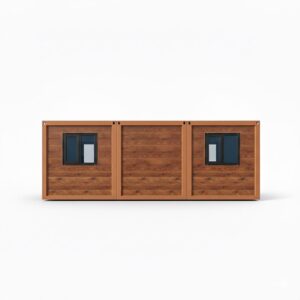

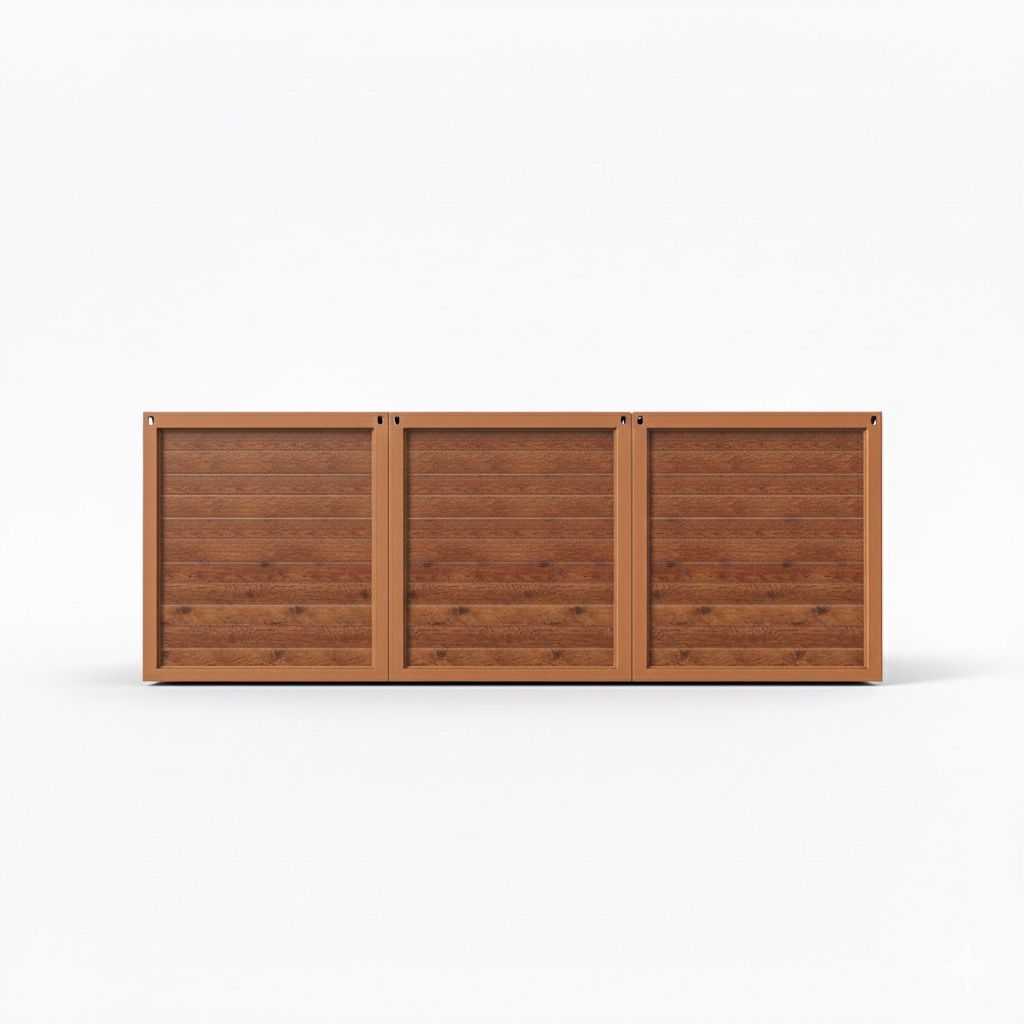

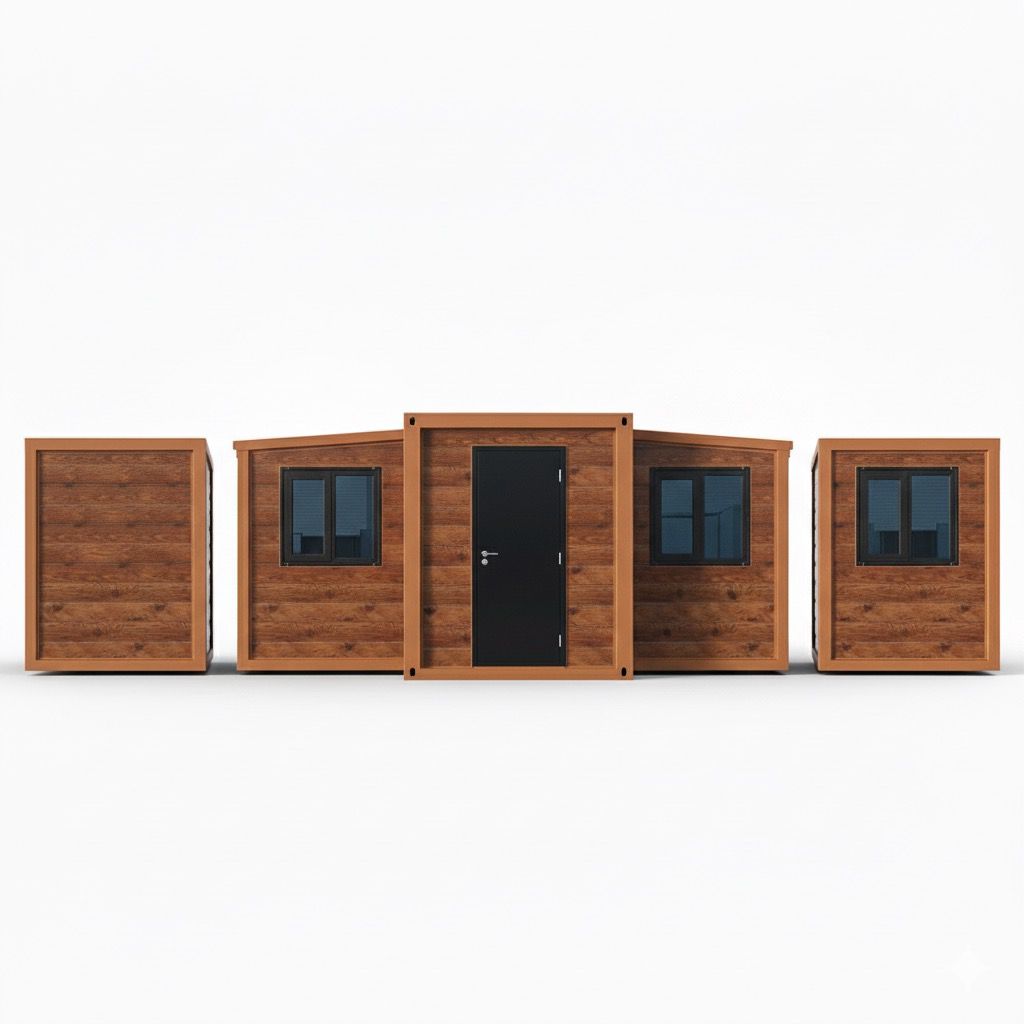

Folded Dimensions

• 7.21 ft (W) × 19.35 ft (L) × 8.14 ft (H)

• Width: 2200 mm → 7 ft 2 in

• Length: 5900 mm → 19 ft 4 in

• Height: 2480 mm → 8 ft 1 in

Total Weight

• Approx. 3,200 kg → 7,054 lbs

⚡ Ultra-Fast Deployment

• Fully prefabricated walls, roof, electrical, plumbing & interior finishes.

• On-site work limited to simple unfolding + connection.

• Can be fully set up within a few hours.

• Ideal for emergency housing, quick rental units, or fast commercial installations.

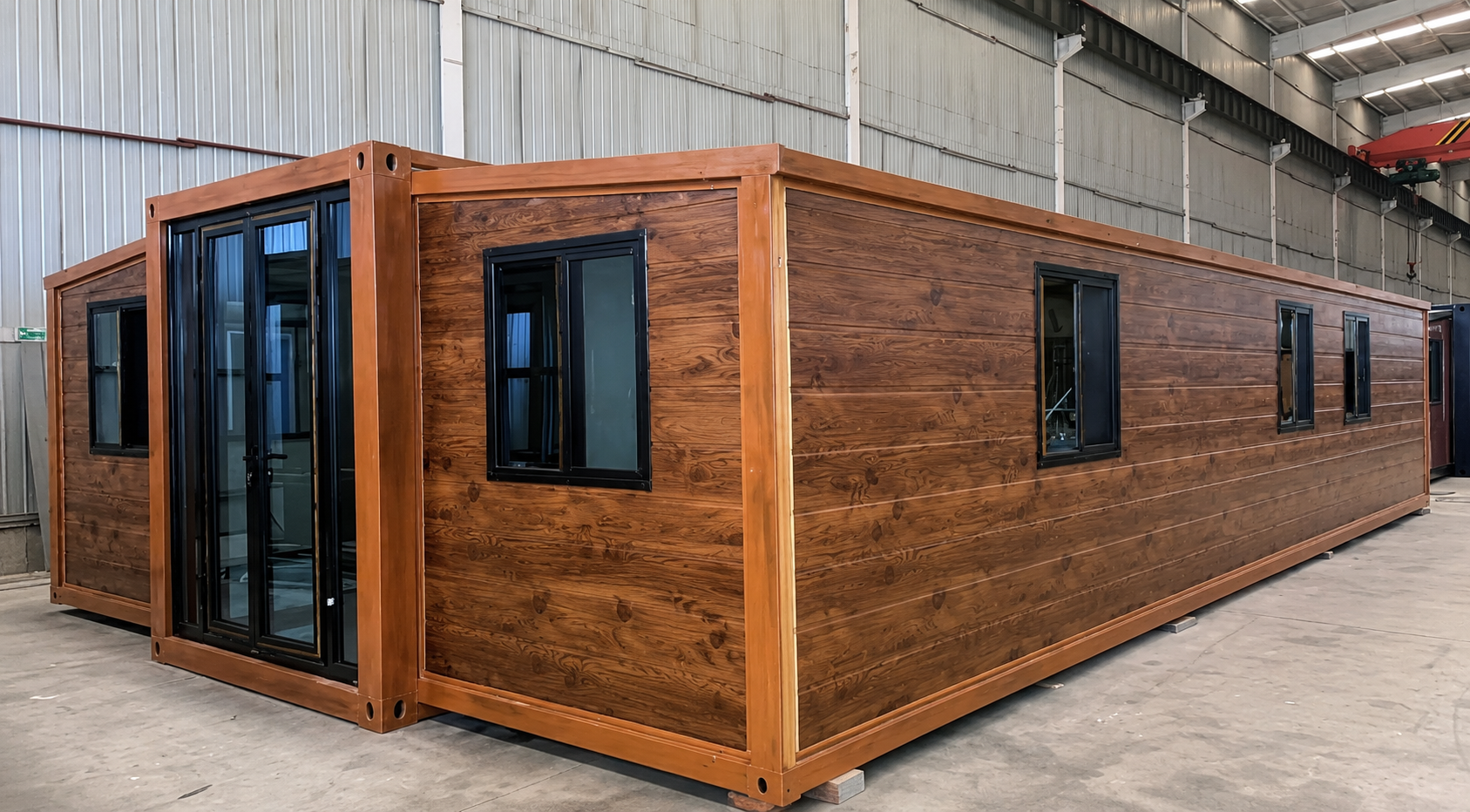

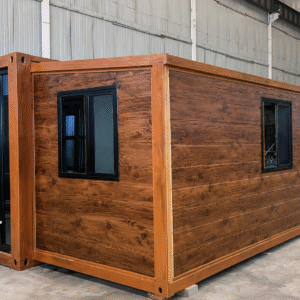

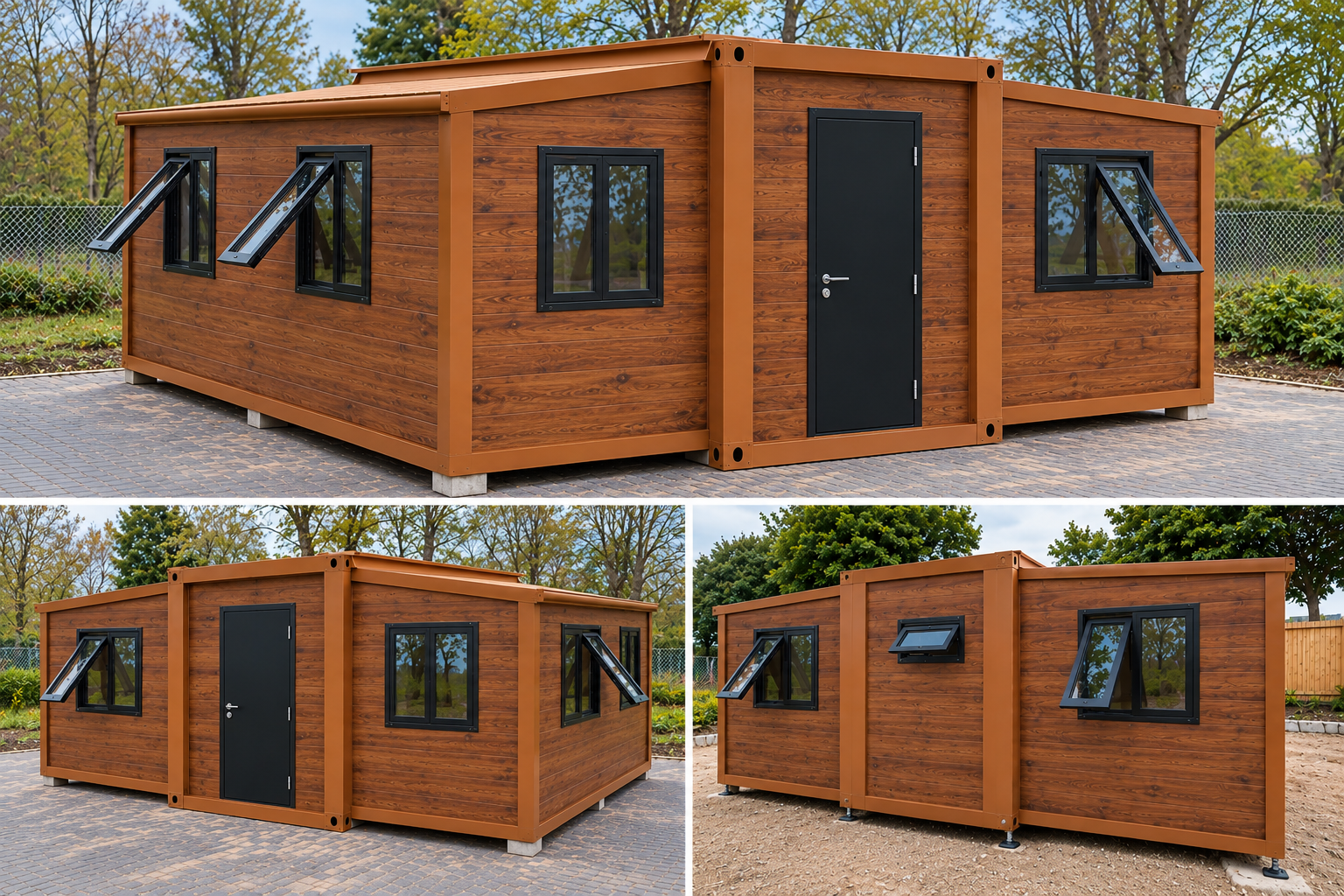

🏗 Premium Exterior Construction

• Galvanized steel structural frame with protective undercoat.

• Cast-iron ISO 1161 compliant container pin holders.

• Double-side fiber-reinforced plastic exterior (3mm).

• Walls:

  • Standard: 75mm EPS + double side 0.5mm steel sandwich panel

  • Upgrade: 60mm EPS + 15mm outer cladding

• Cladding: High-density rigid polyurethane insulation with aluminum steel sheet.

• Fully weatherproof, corrosion-resistant, and built for long-term life.

🌡 Superior Insulation

• Double vacuum insulated glass windows (5mm + 12mm + 5mm)

• EPS + steel sandwich wall panels

• Glass-wool insulated roofing

• Energy-efficient heat and sound insulation

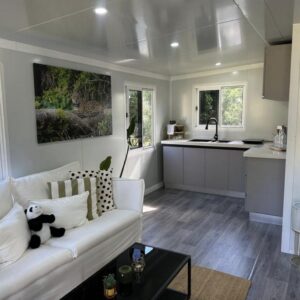

🏡 Internal Materials & Flooring

• Fiber-cement floorboard with PVC surface covering.

• Layered flooring system:

  • 15mm MgO/BULU structural board.

  • 2mm PVC vinyl finish.

  • Optional upgrade: 4mm SPC (Stone Plastic Composite) for premium durability.

• Fire-resistant, moisture-resistant, termite-proof.

🔌 Electrical System (USA Ready)

• High-grade wiring harness

• Pre-installed lights, switches & sockets

• Main wiring panel included

• Compatible with USA 110V electrical systems

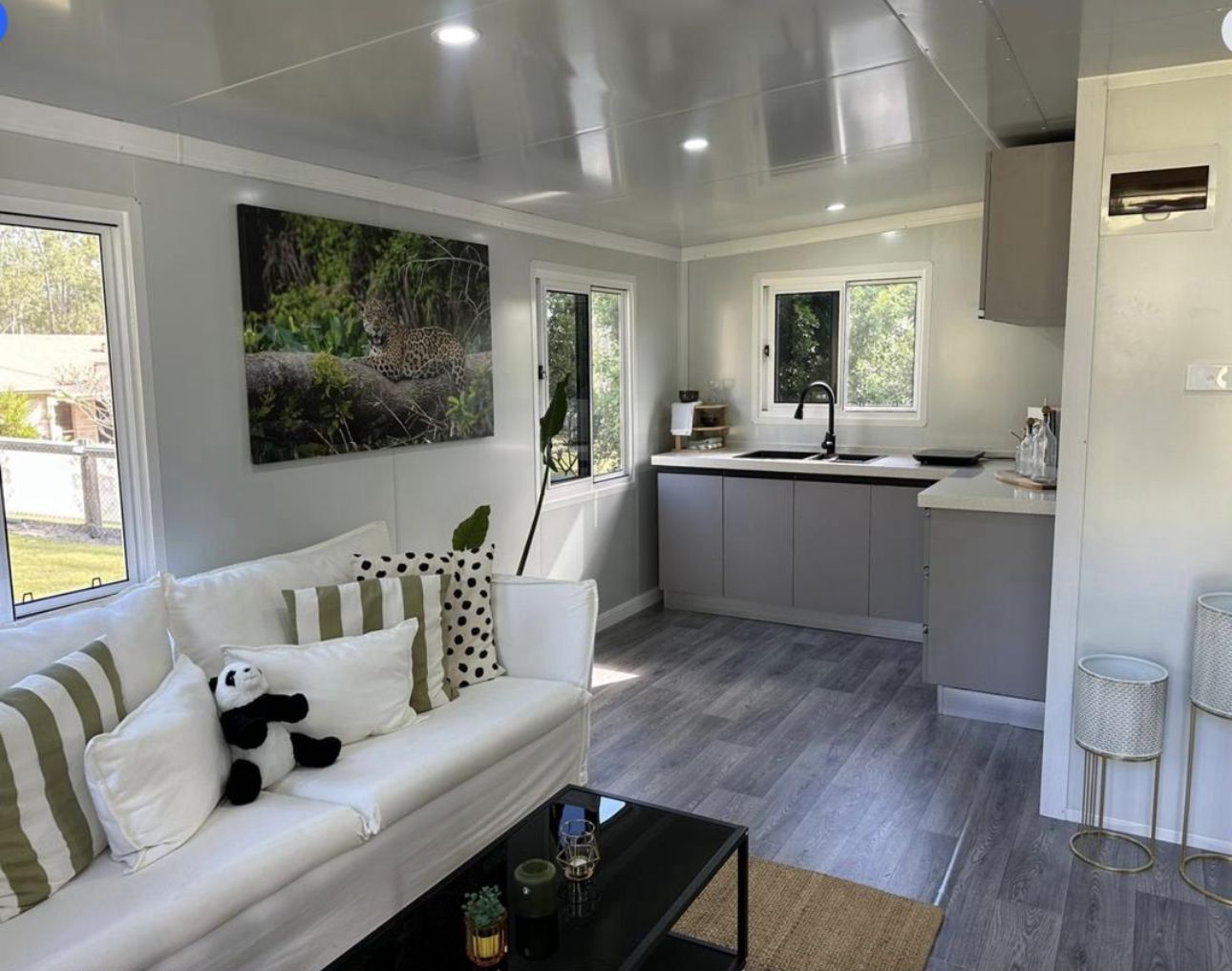

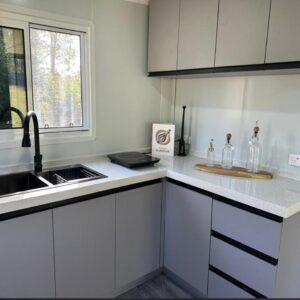

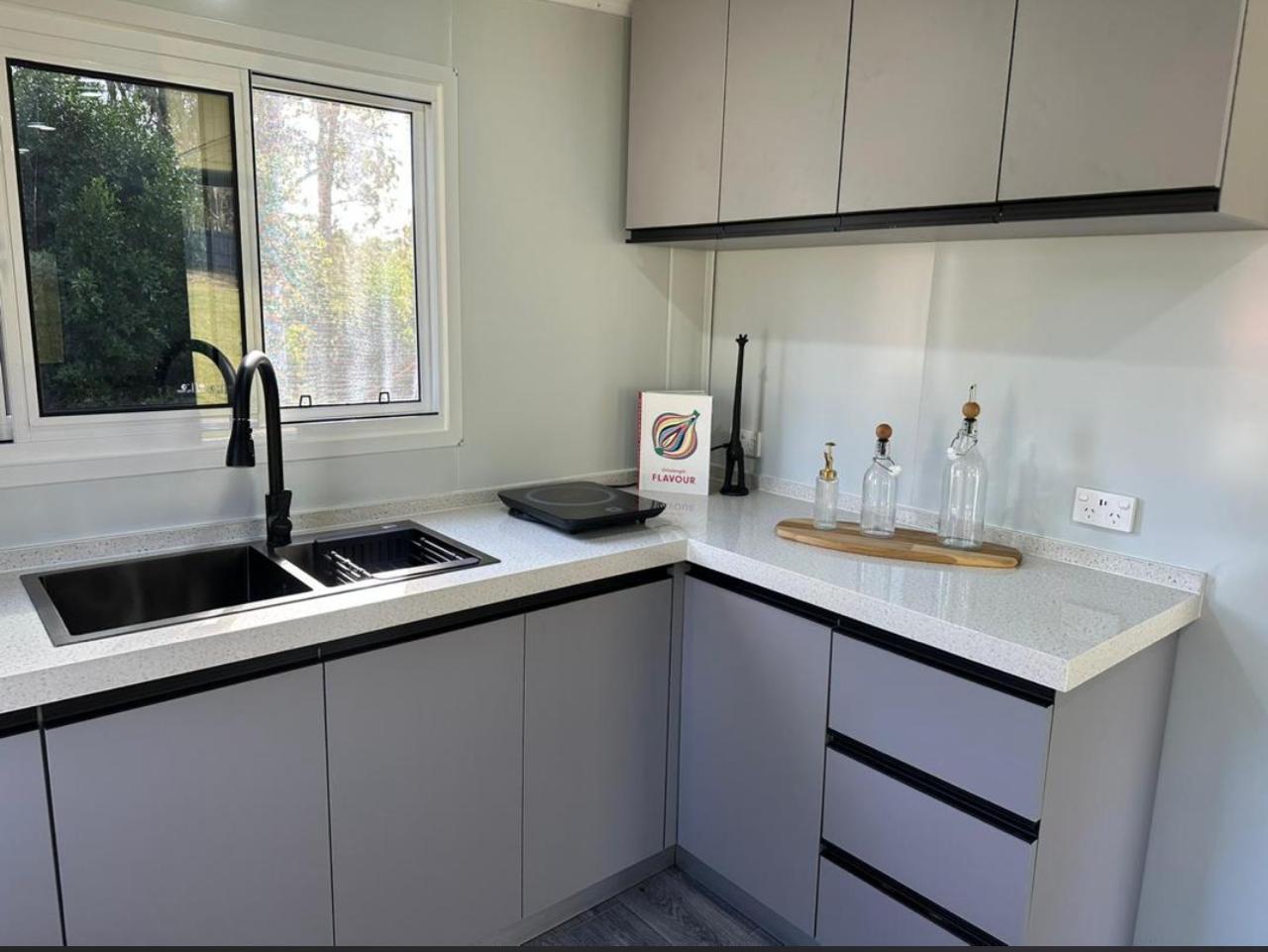

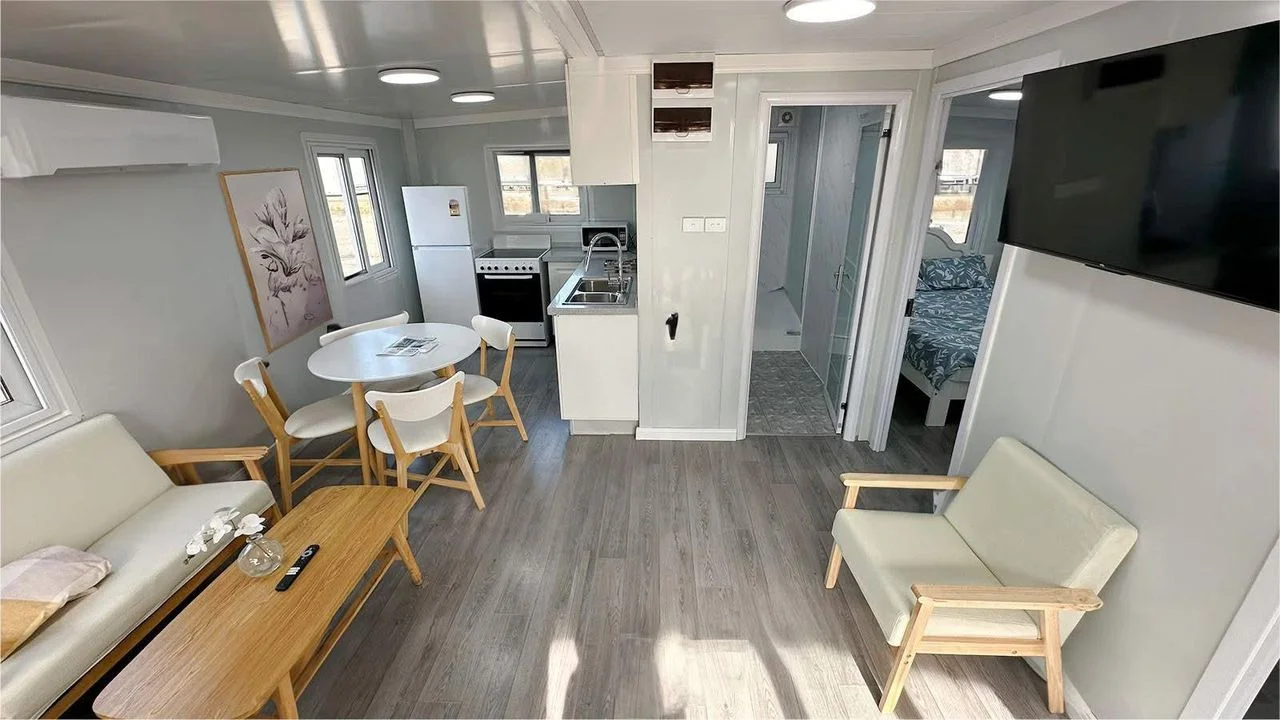

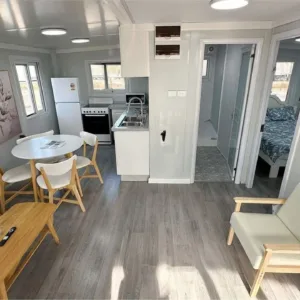

🍽️KITCHEN

• Luxury 20mm Quartz engineered stone countertop.

• Sleek modular cabinetry with soft-close hinges.

• Overhead storage cupboards included.

• Double-bowl stainless steel sink with flip mixer (assembly may be required).

🚪 Doors & Windows

• Certified 3C high-performance windows.

• Double-sided vacuum insulated glass: 5mm + 12mm + 5mm.

• Thermal & acoustic insulation ensures a quieter, cooler interior.

• Aluminum alloy frame with reinforced rubber seals.

• Reduced AC electricity consumption due to high insulation quality.

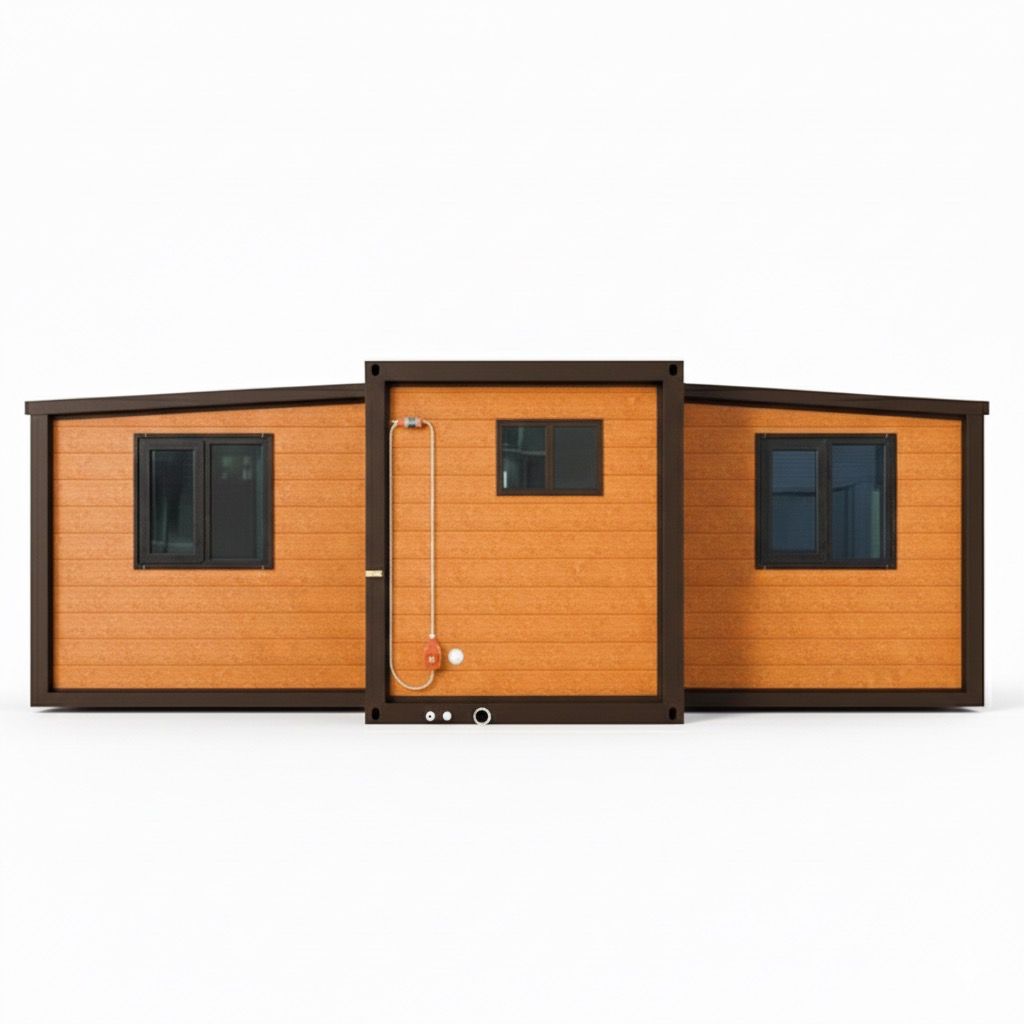

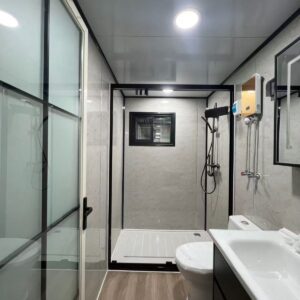

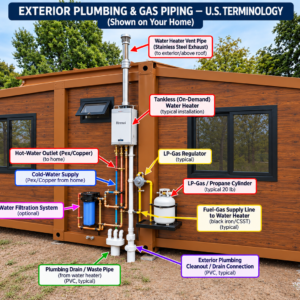

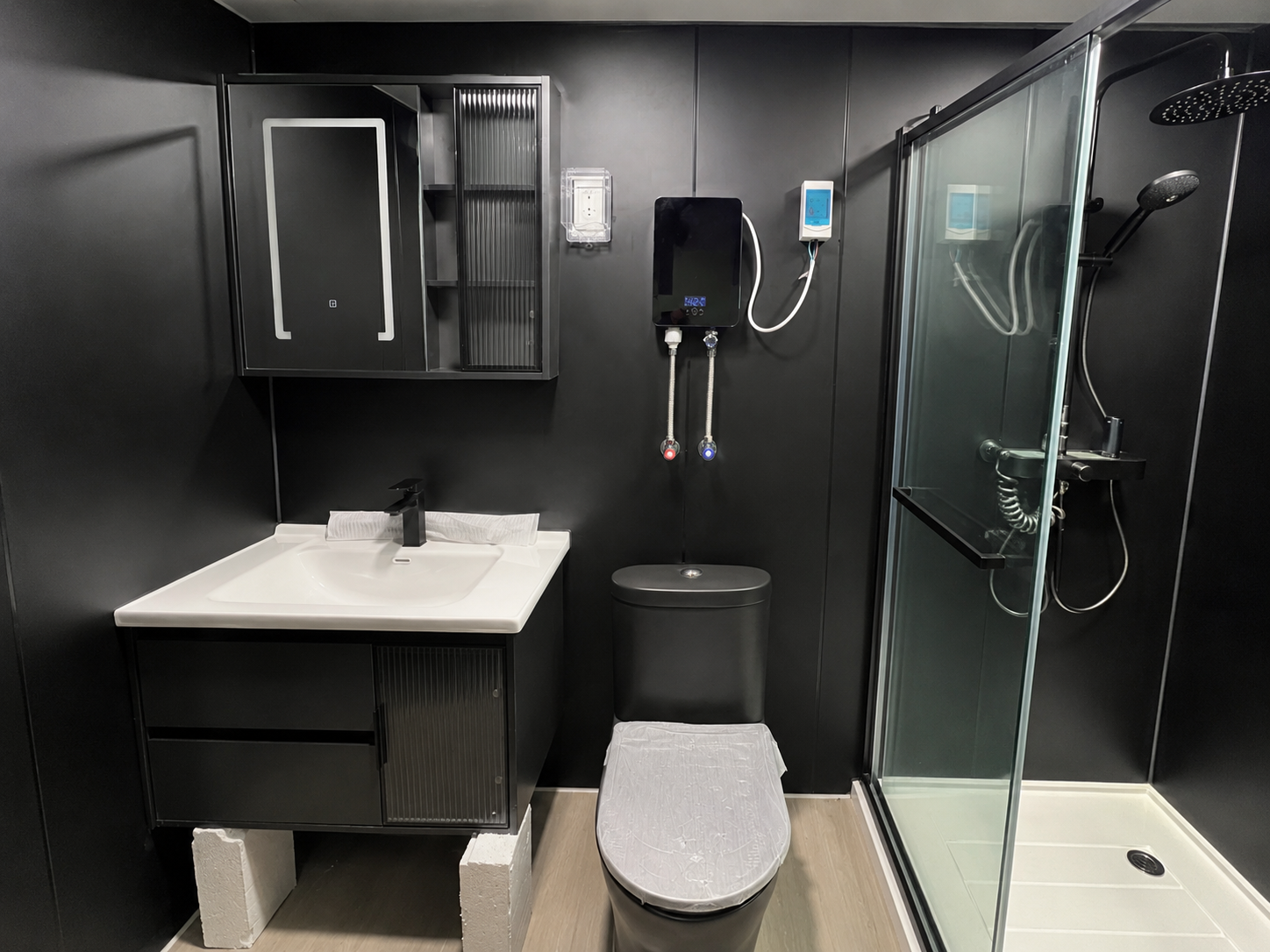

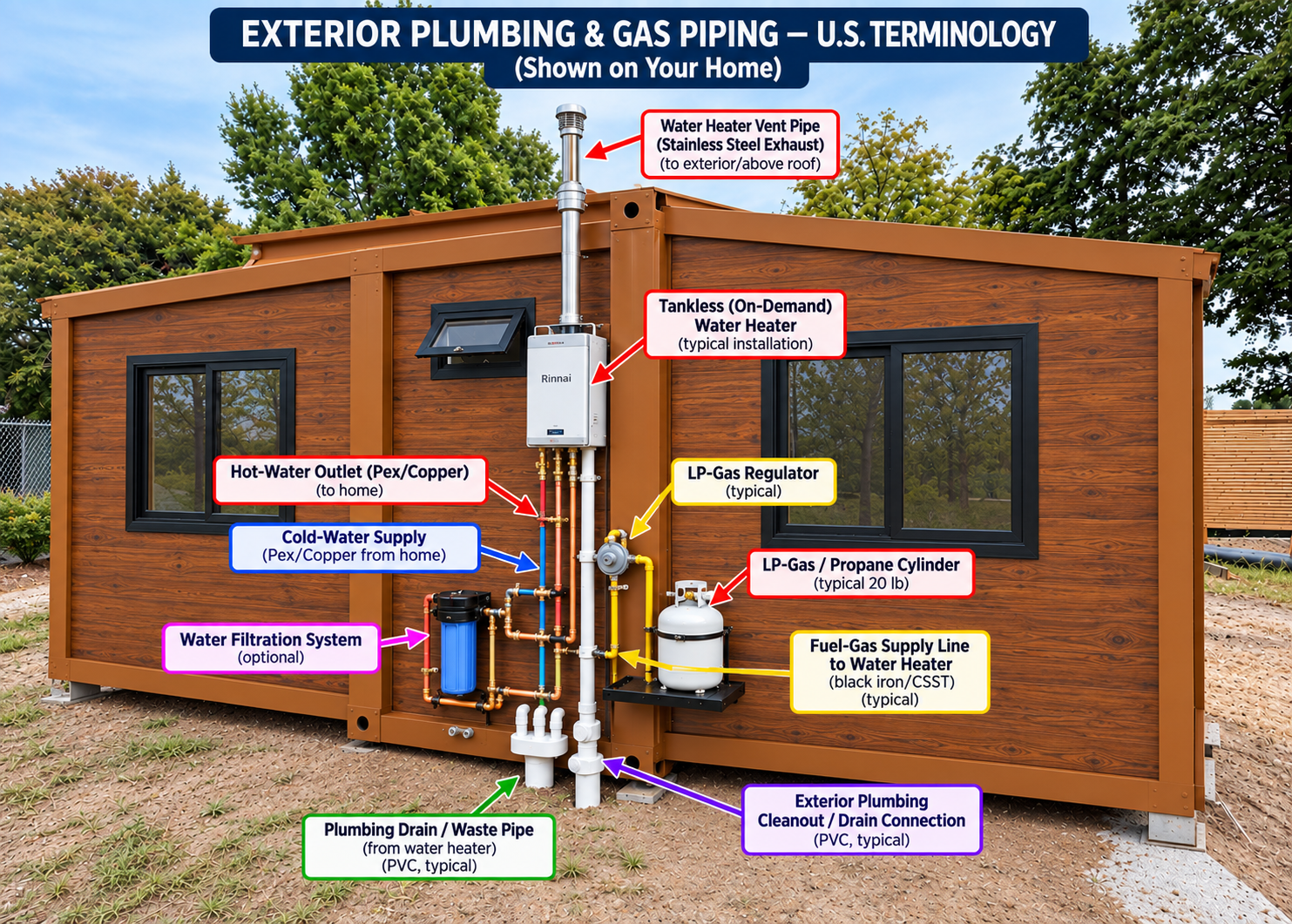

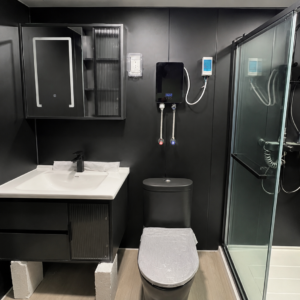

🚿 Plumbing System

• All plumbing positioned on the exterior bathroom wall for easy maintenance.

• Hot & cold pre-plumbed inlets for:

  • Kitchen sink

  • Bathroom basin

  • Toilet

  • Shower

• Separate drain pipes for wastewater and greywater.

• Pre-plumbed 50mm PVC drainage to a single outlet.

• Ready for direct connection to USA plumbing systems.

📊 Engineering Performance

• Anti-earthquake rating: Level 8

• Wind resistance: 0.6 kN/m² (up to 120 km/h)

• Load Capacity:

  • Roof (middle): 120 kg/m²

  • Roof (slope): 100 kg/m²

  • Floor: 200 kg/m²

• Snow load:

  • Middle top: 1.2 kN/m²

  • Bevel top: 1.0 kN/m²

• Thermal conductivity: 0.05 – excellent insulation efficiency.

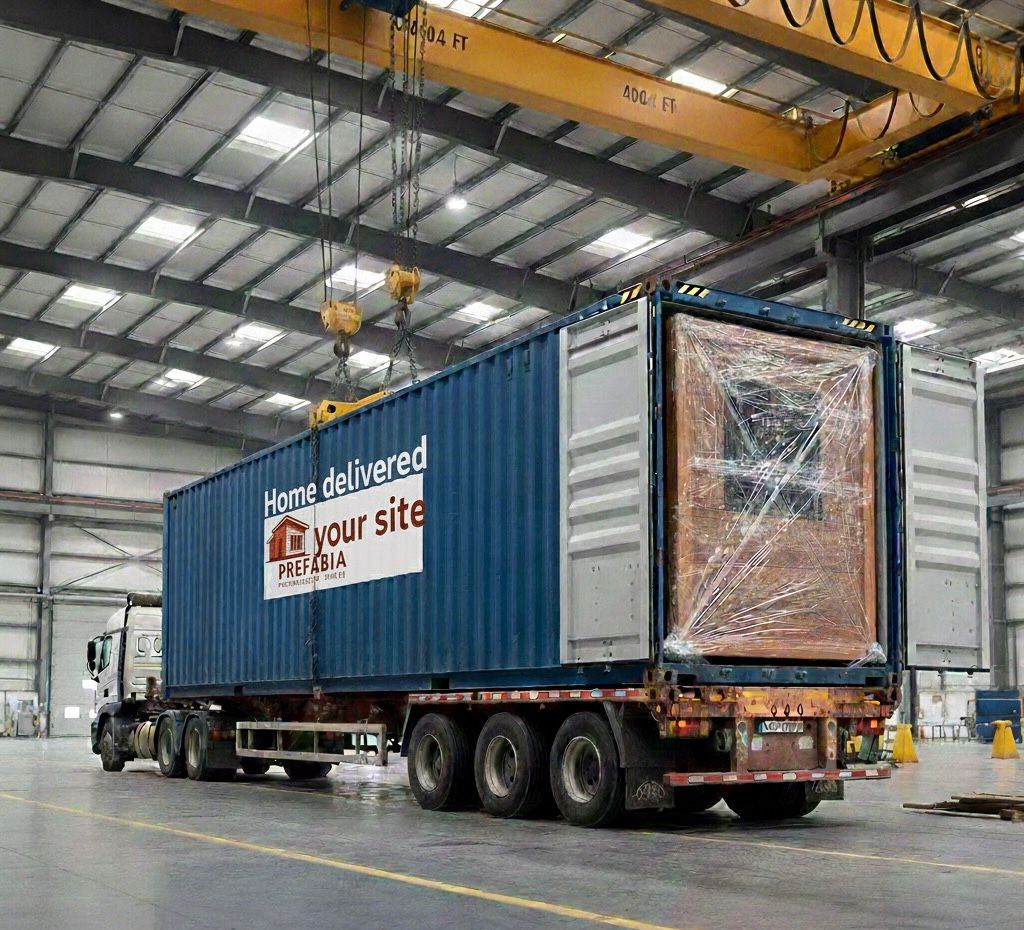

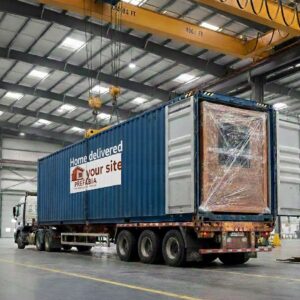

⚠️ Delivery, Unloading & Installation

• Delivery to your location is included.

• However, unloading and on-site installation must be arranged by the customer.

• A crane, forklift, or similar lifting equipment is required to safely unload the 20FT unit.

🛒 Order Your MOB CLAYDEN

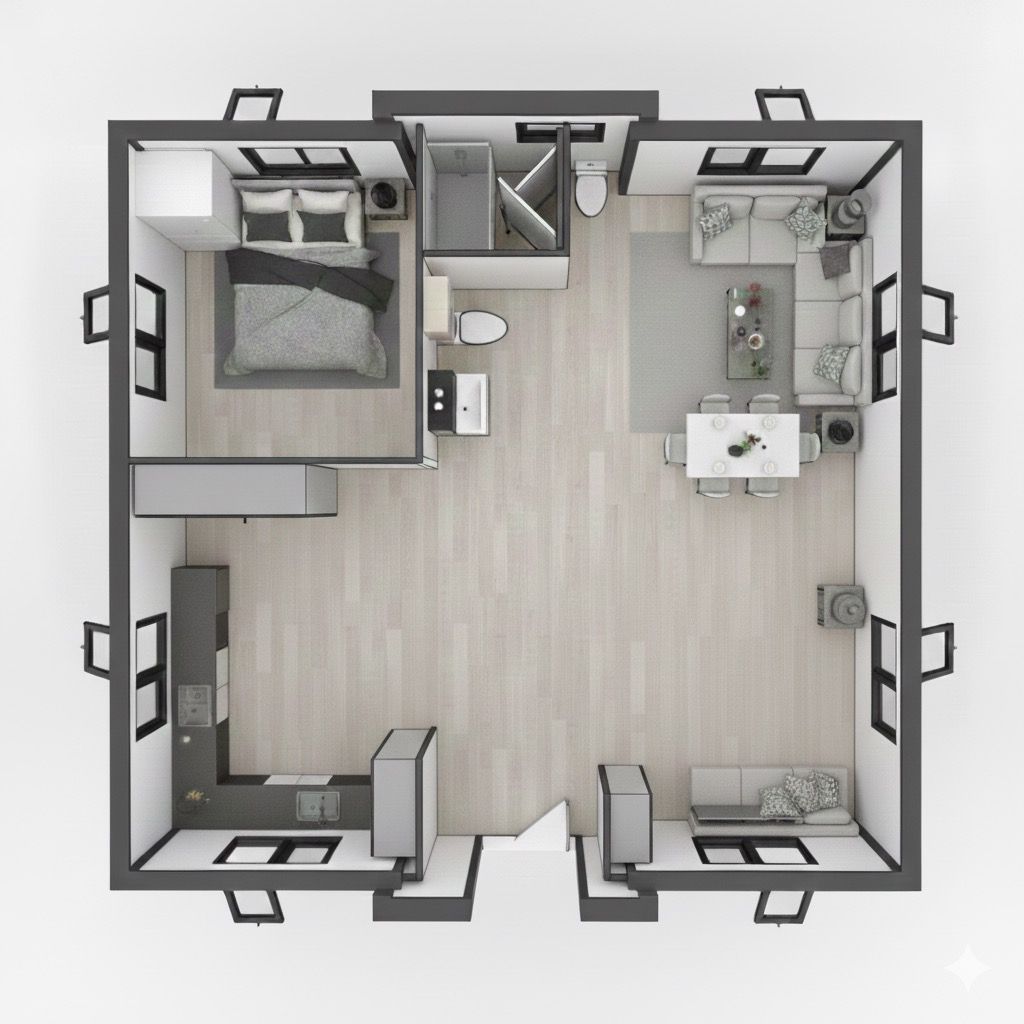

1. Choose your layout (1–3 bedrooms)
2. Select available finishes
3. Contact customer care for any customizations
4. Place your order
5. Delivery to your location (customer handles unloading & installation)

A complete home — delivered fast and built exactly the way you need.

📞 Custom Layouts & Upgrades

For any custom changes — including layout modifications, extra bedrooms, flooring upgrades, window options, exterior cladding, or kitchen/bathroom upgrades — you must contact customer care for approval and pricing.
All customization requests are processed through our support team to ensure correct engineering, safety, and compatibility with the expandable structure.
