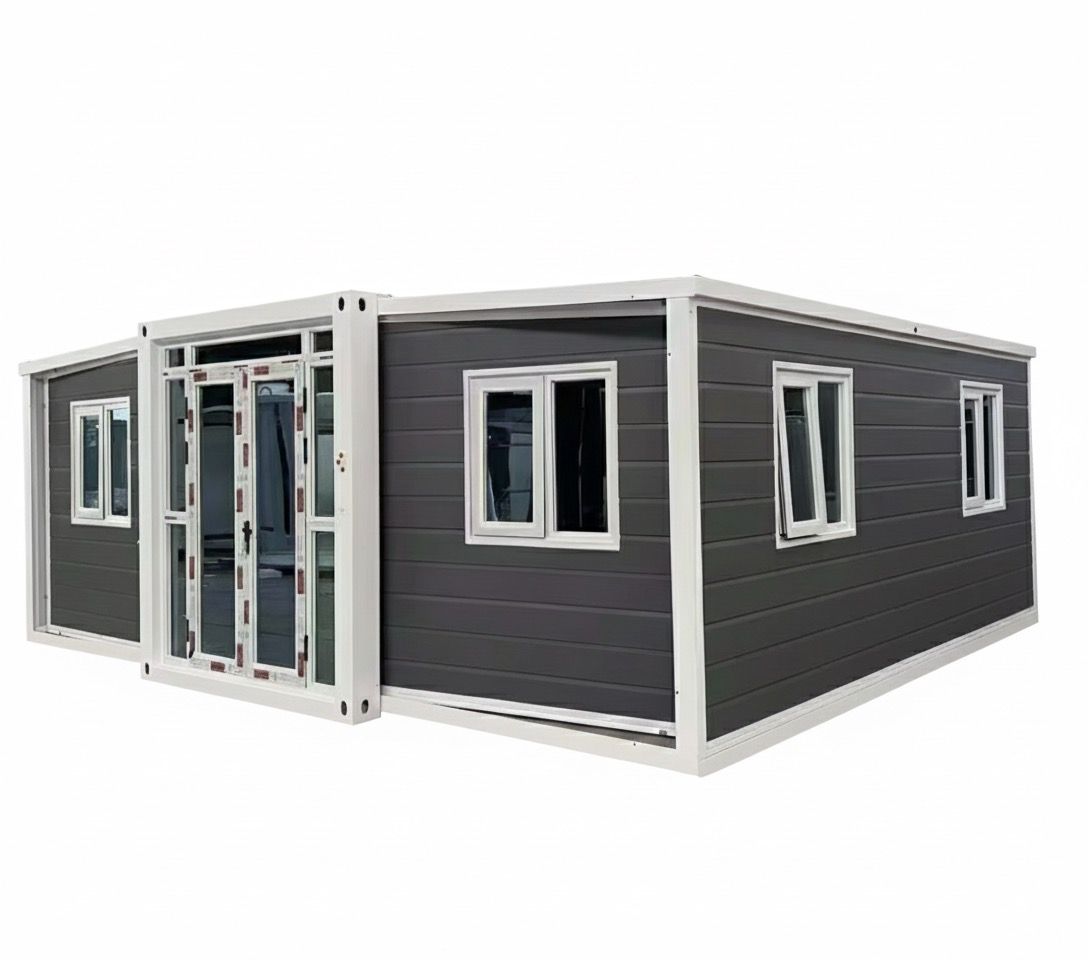

MOB SLATE – 20FT Expandable Modular Home

Modern Slate Exterior • Clean White Frame • Fast, Durable, Stylish

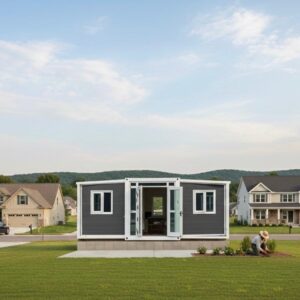

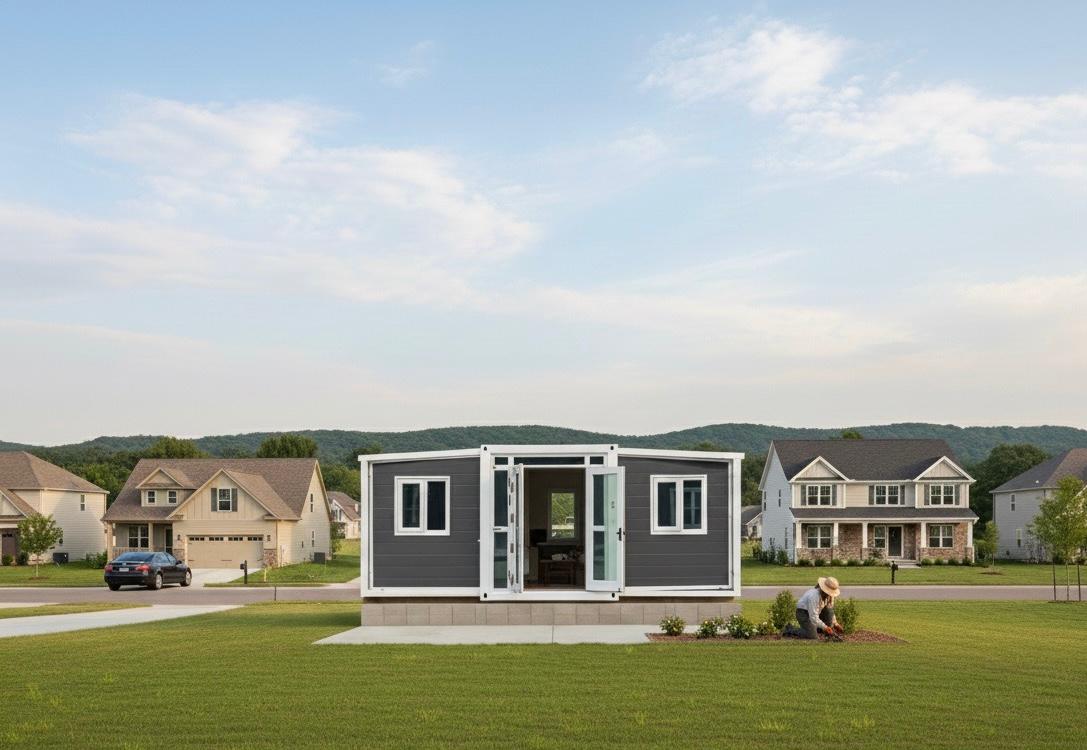

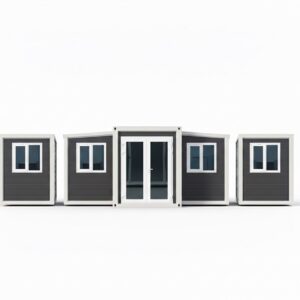

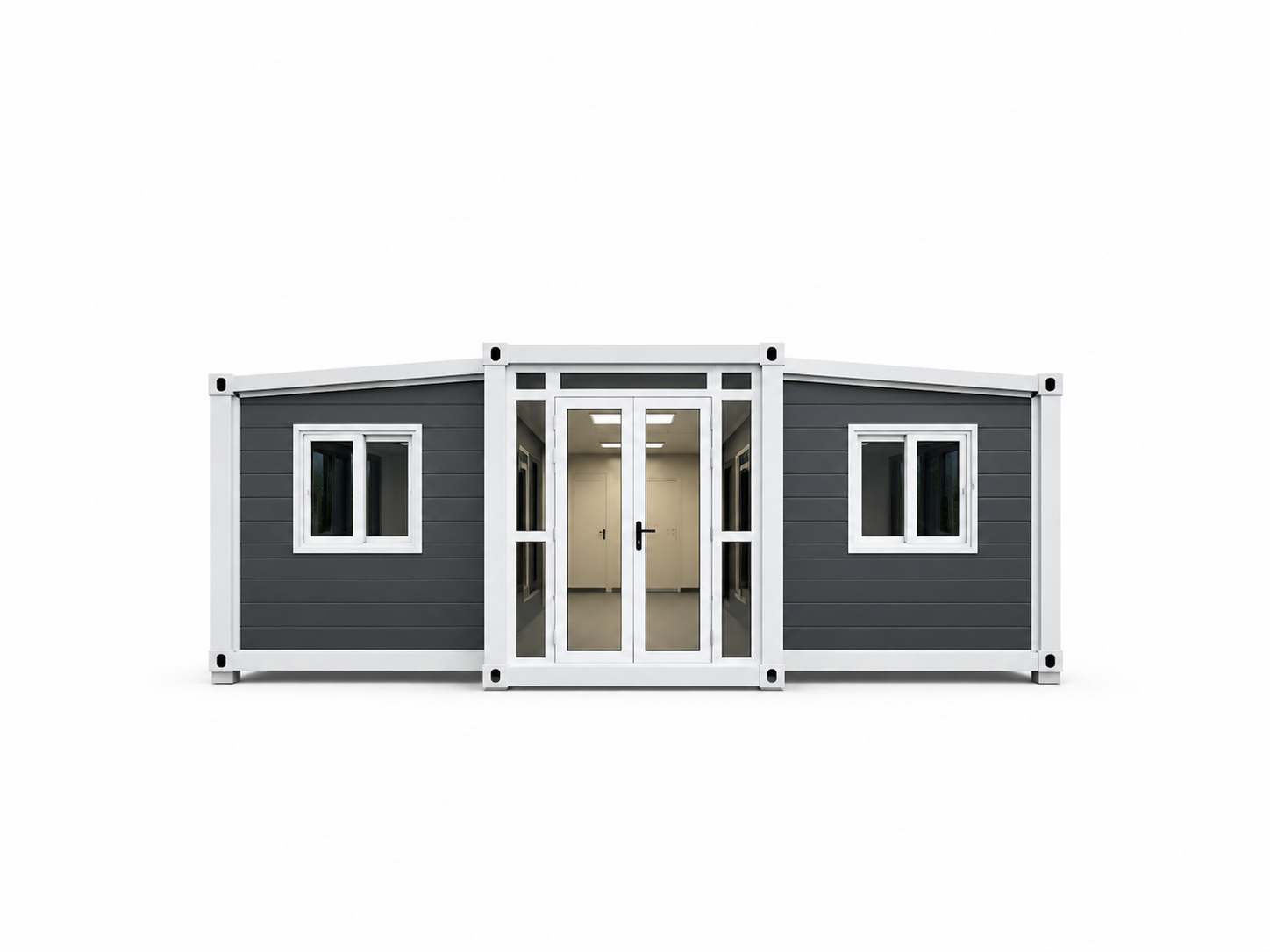

MOB SLATE is a sleek 20FT expandable modular home featuring a dark slate-gray exterior paired with a crisp white frame, creating a bold yet elegant design. This model brings a contemporary architectural look perfect for residential living, backyard ADUs, resort cabins, offices, rentals, and commercial spaces.

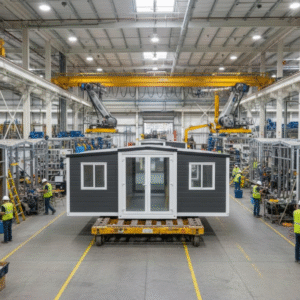

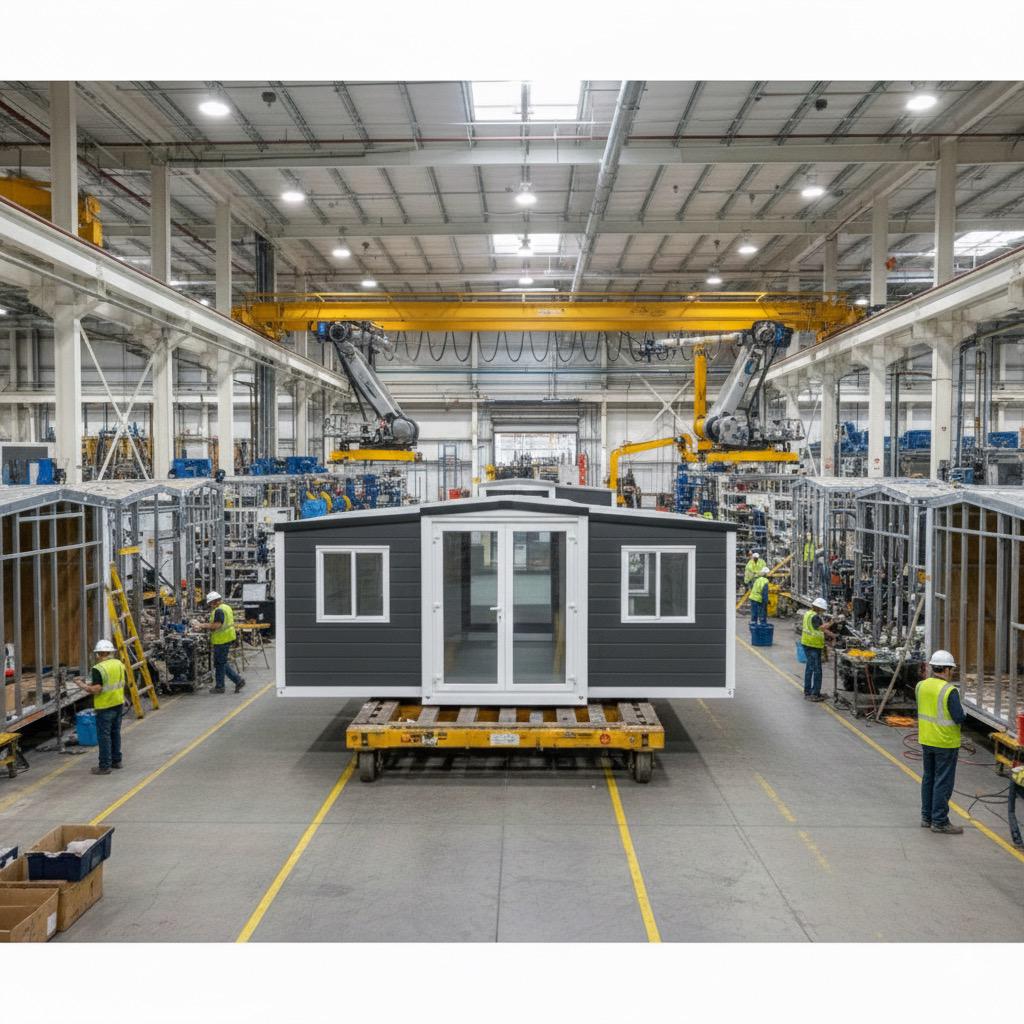

Delivered fully prefabricated with electrical, plumbing, insulation, and interior finishing, MOB SLATE unfolds into a complete home within hours — providing a modern living solution that combines strength, comfort, and style.

📏 Dimensions (Feet & Inches + mm)

External Dimensions

• 20.73 ft (W) × 19.35 ft (L) × 8.14 ft (H)

• Width: 6320 mm → 20 ft 9 in

• Length: 5900 mm → 19 ft 4 in

• Height: 2480 mm → 8 ft 1 in

• Side Height: 2270 mm → 7 ft 5 in

Internal Dimensions

• 20.20 ft (W) × 18.24 ft (L) × 7.35 ft (H)

• Width: 6160 mm → 20 ft 2 in

• Length: 5560 mm → 18 ft 3 in

• Height: 2240 mm → 7 ft 4 in

• Side Height: 2150 mm → 7 ft 1 in

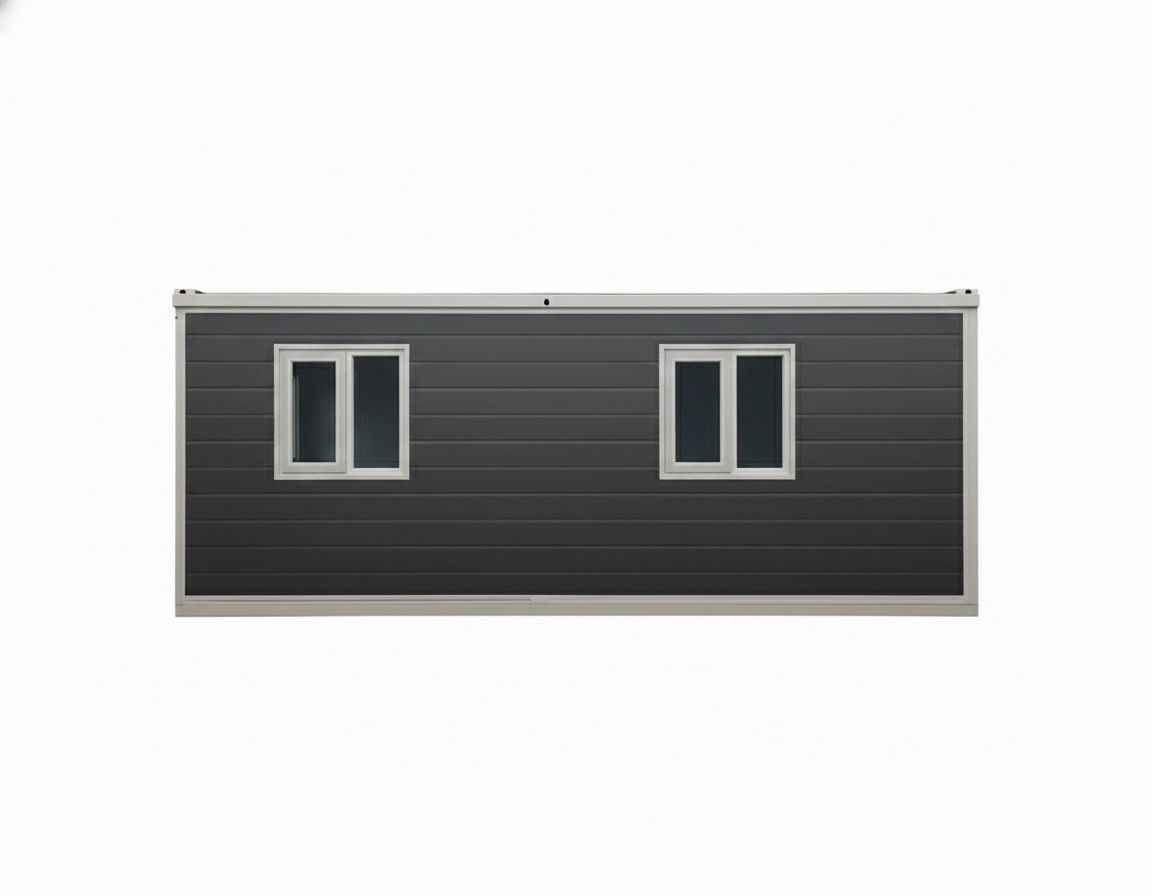

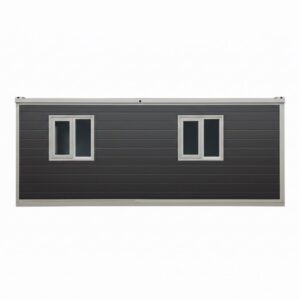

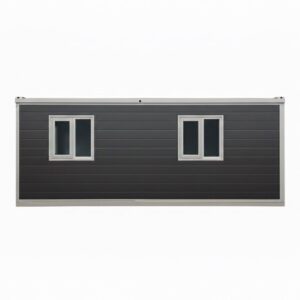

Folded Dimensions

• 7.21 ft (W) × 19.35 ft (L) × 8.14 ft (H)

• Width: 2200 mm → 7 ft 2 in

• Length: 5900 mm → 19 ft 4 in

• Height: 2480 mm → 8 ft 1 in

Total Weight

• Approx. 3,200 kg → 7,054 lbs

✨ Key Highlights

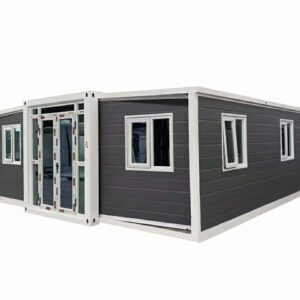

• Modern slate-gray exterior with premium white trim

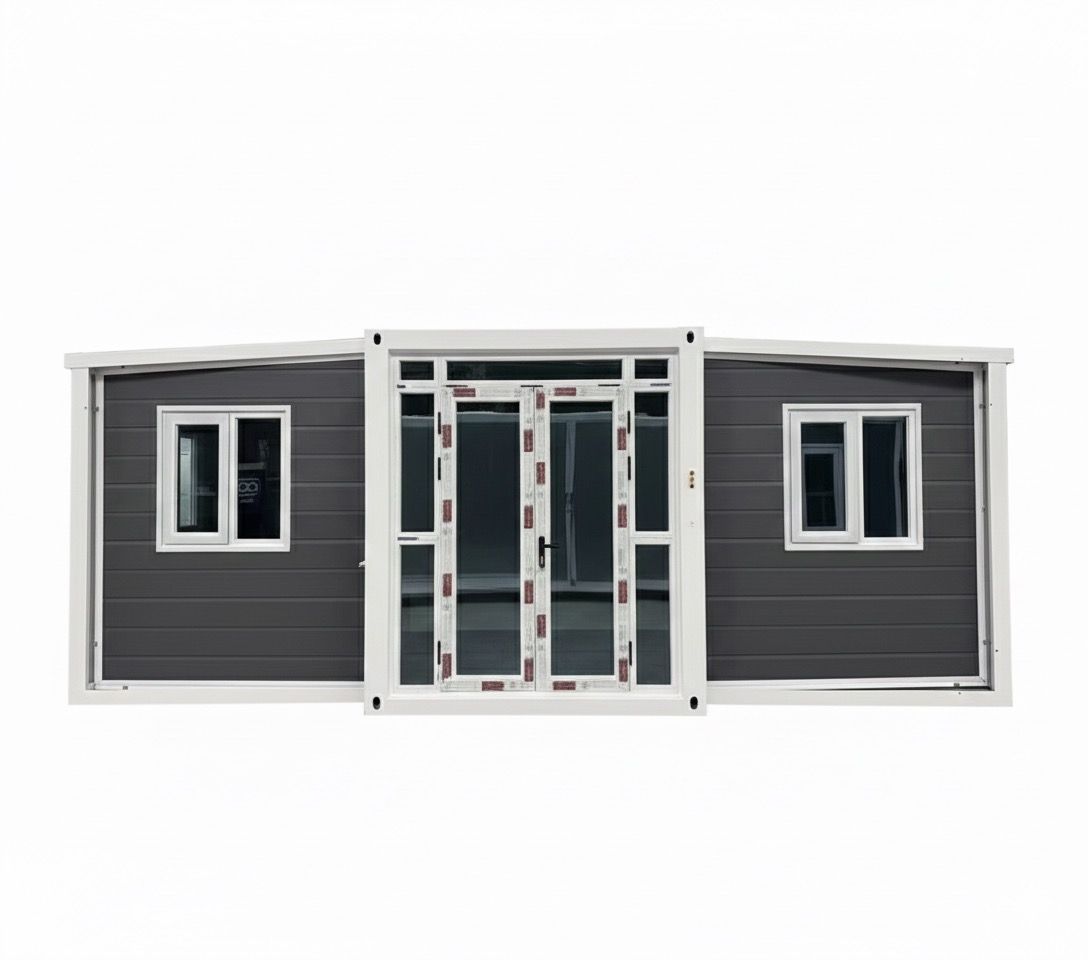

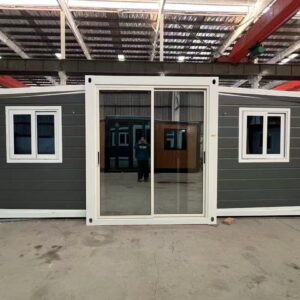

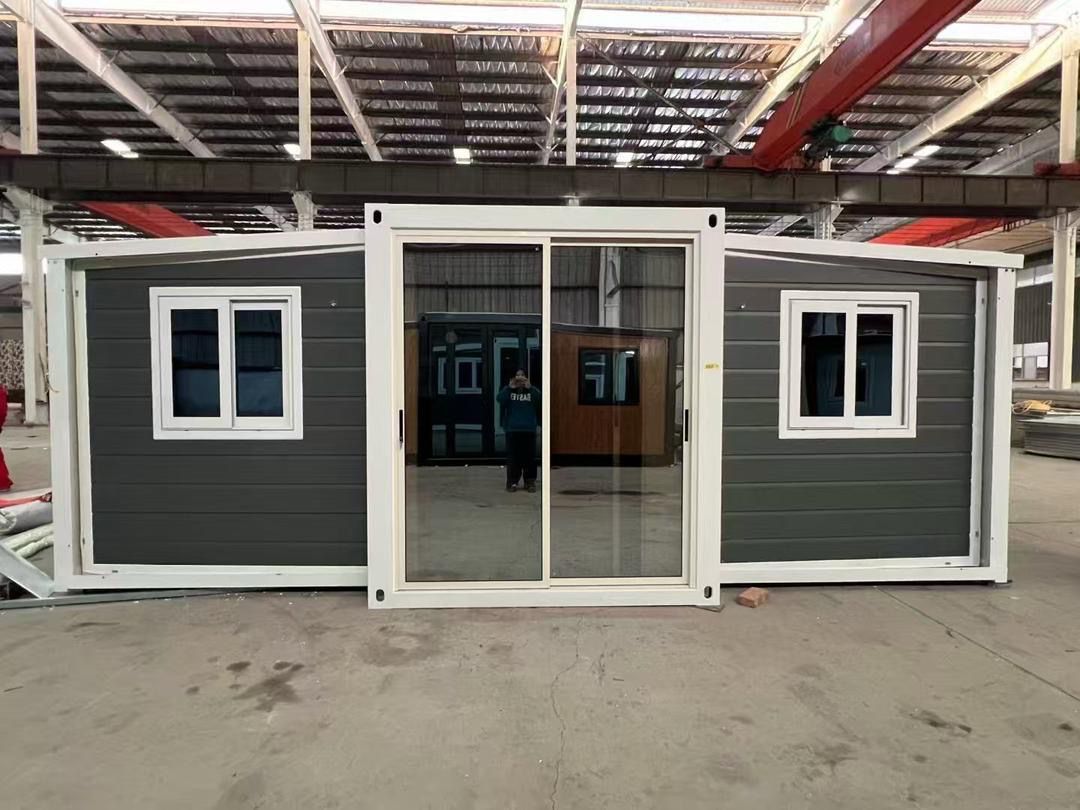

• Full glass central entrance for natural daylight

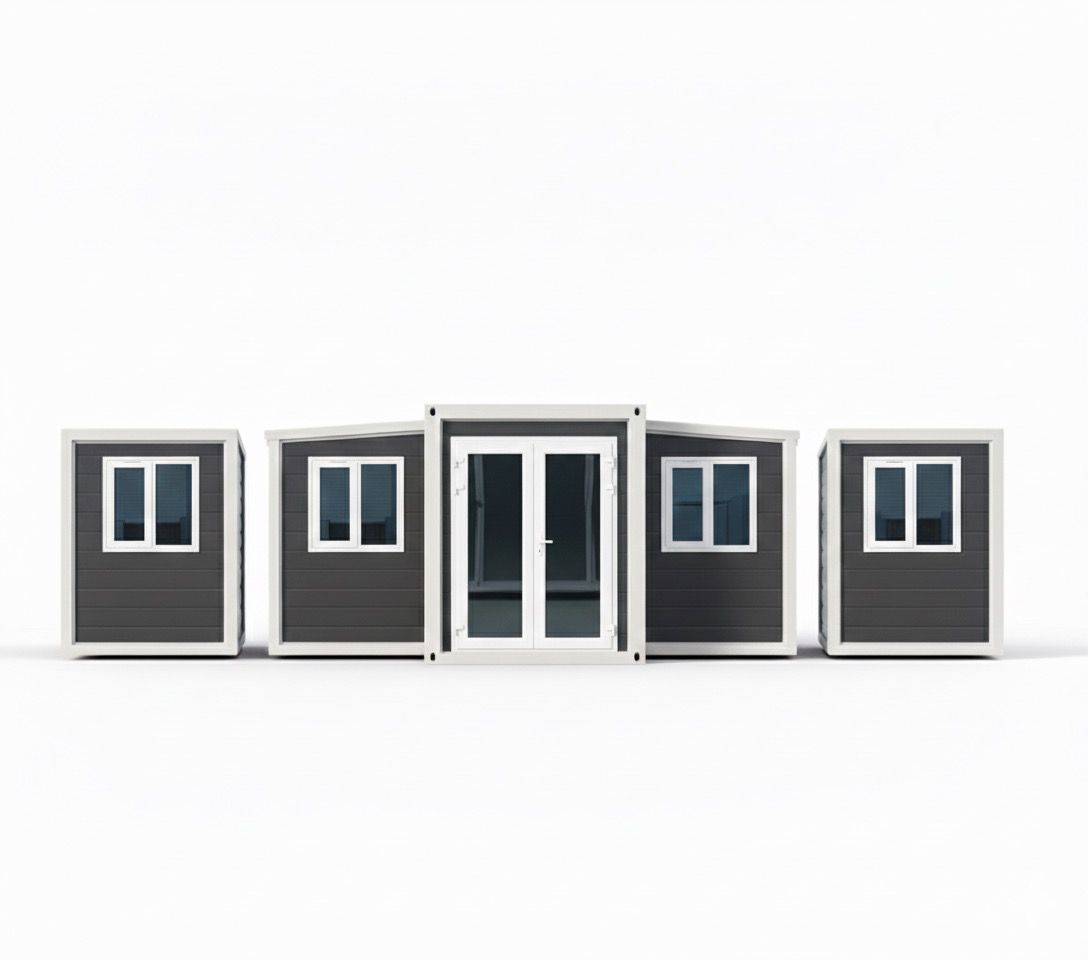

• Expands from a compact 20FT unit into a large open home

• Pre-installed electrical, plumbing, flooring, ceiling & lighting

• Perfect for living units, offices, studios, Airbnb rentals, and farm stays

• Durable, weather-resistant construction built for long-term use

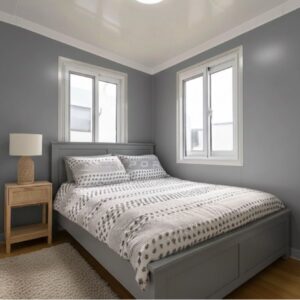

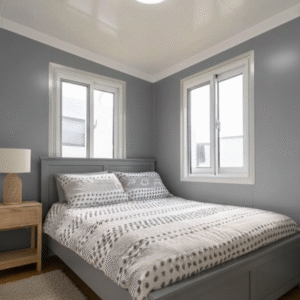

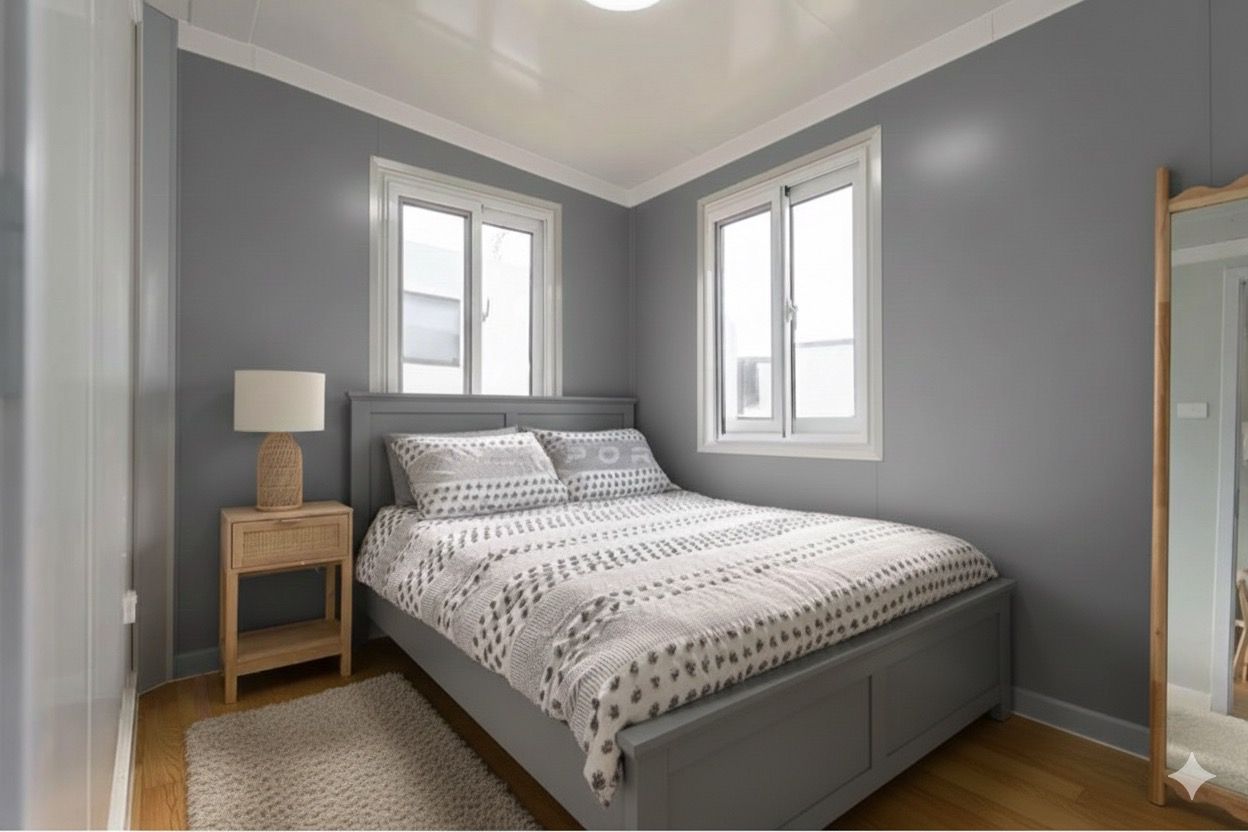

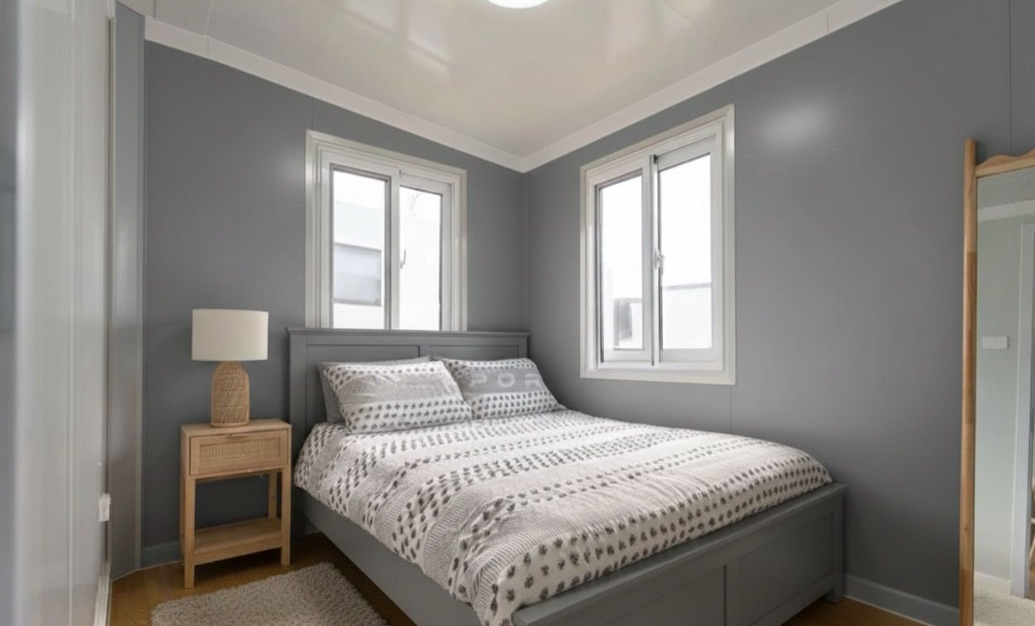

🏡 Interior Experience

• Clean, open-plan interior ready for custom layouts

• Smooth white wall finish with modern lighting

• Bright, naturally lit space ideal for living or working

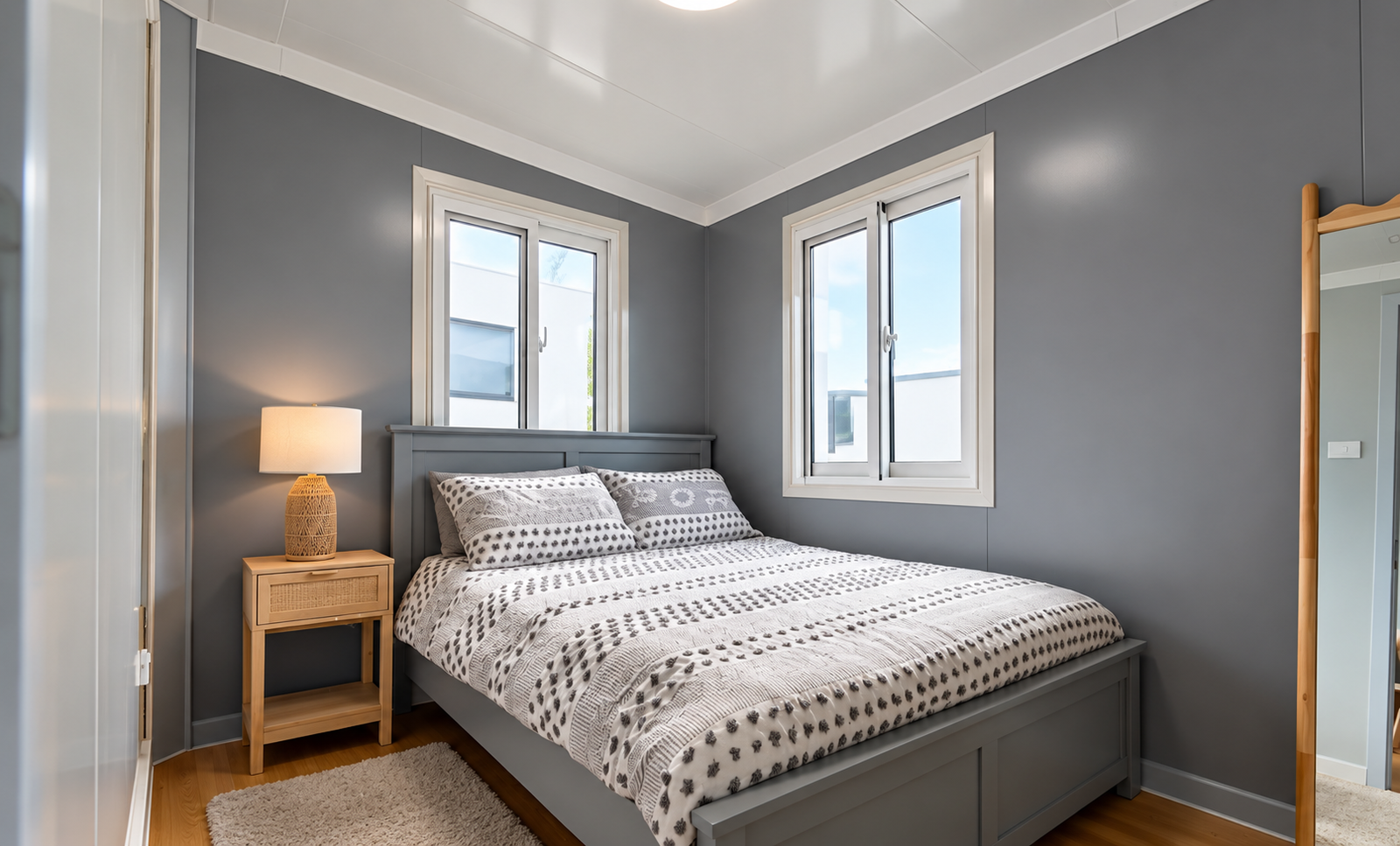

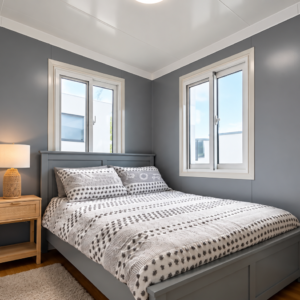

• Excellent for 1–3 bedroom configurations based on customer choice

🏗 Premium Exterior Construction

• Galvanized steel structural frame with protective undercoat.

• Cast-iron ISO 1161 compliant container pin holders.

• Double-side fiber-reinforced plastic exterior (3mm).

• Walls:

  • Standard: 75mm EPS + double side 0.5mm steel sandwich panel

  • Upgrade: 60mm EPS + 15mm outer cladding

• Cladding: High-density rigid polyurethane insulation with aluminum steel sheet.

• Fully weatherproof, corrosion-resistant, and built for long-term life.

🌡 Superior Insulation

• Double vacuum insulated glass windows (5mm + 12mm + 5mm)

• EPS + steel sandwich wall panels

• Glass-wool insulated roofing

• Energy-efficient heat and sound insulation

🏡 Internal Materials & Flooring

• Fiber-cement floorboard with PVC surface covering.

• Layered flooring system:

  • 15mm MgO/BULU structural board.

  • 2mm PVC vinyl finish.

  • Optional upgrade: 4mm SPC (Stone Plastic Composite) for premium durability.

• Fire-resistant, moisture-resistant, termite-proof.

🔌 Electrical System (USA Ready)

• High-grade wiring harness

• Pre-installed lights, switches & sockets

• Main wiring panel included

• Compatible with USA 110V electrical systems

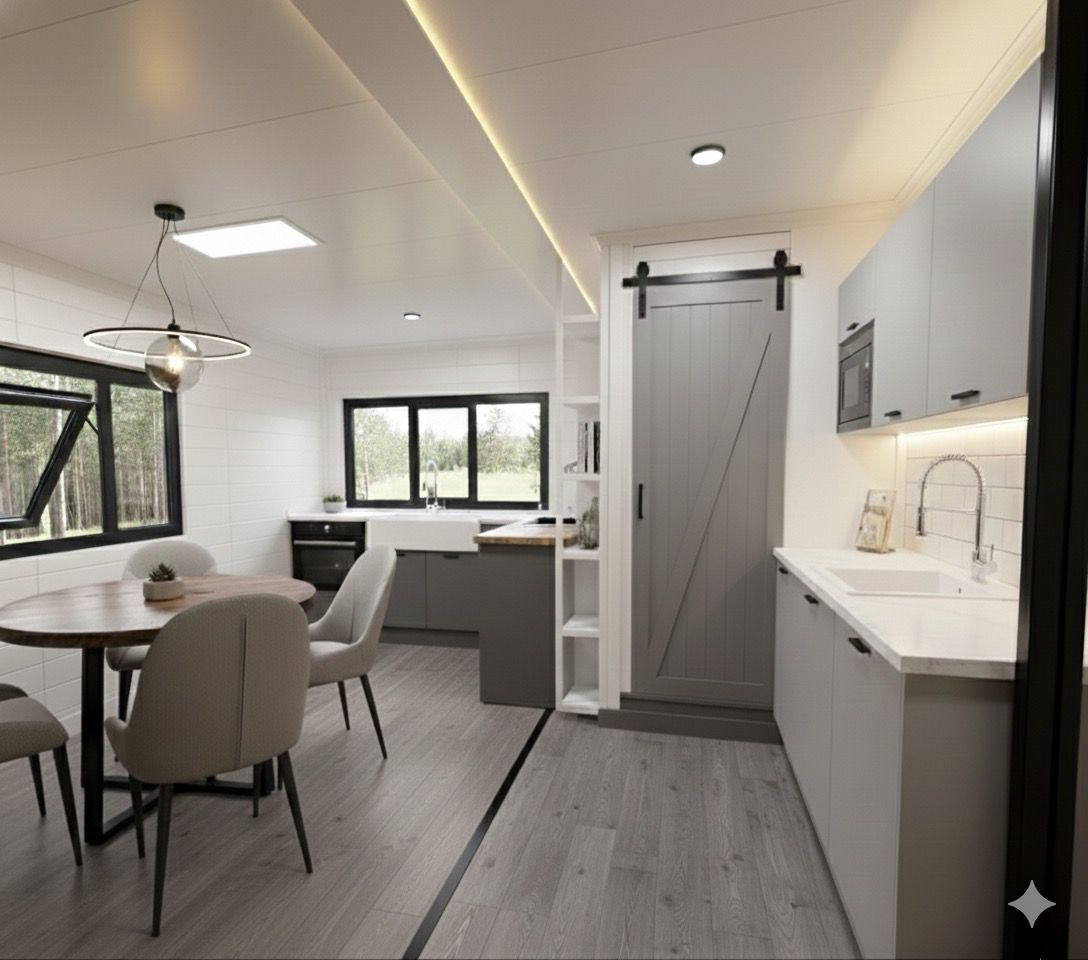

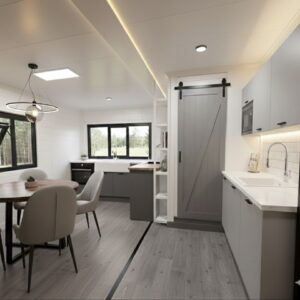

🍽️KITCHEN

• Luxury 20mm Quartz engineered stone countertop.

• Sleek modular cabinetry with soft-close hinges.

• Overhead storage cupboards included.

• Double-bowl stainless steel sink with flip mixer (assembly may be required).

🚪 Doors & Windows

• Certified 3C high-performance windows.

• Double-sided vacuum insulated glass: 5mm + 12mm + 5mm.

• Thermal & acoustic insulation ensures a quieter, cooler interior.

• Aluminum alloy frame with reinforced rubber seals.

• Reduced AC electricity consumption due to high insulation quality.

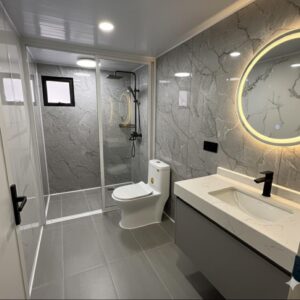

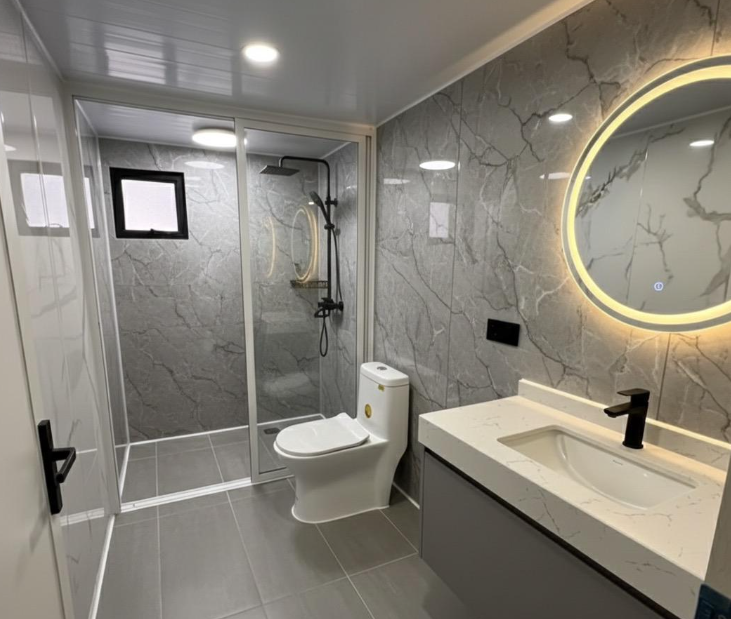

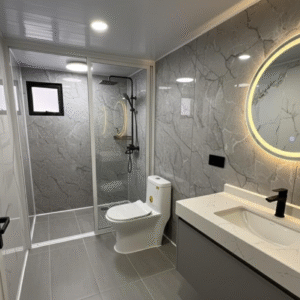

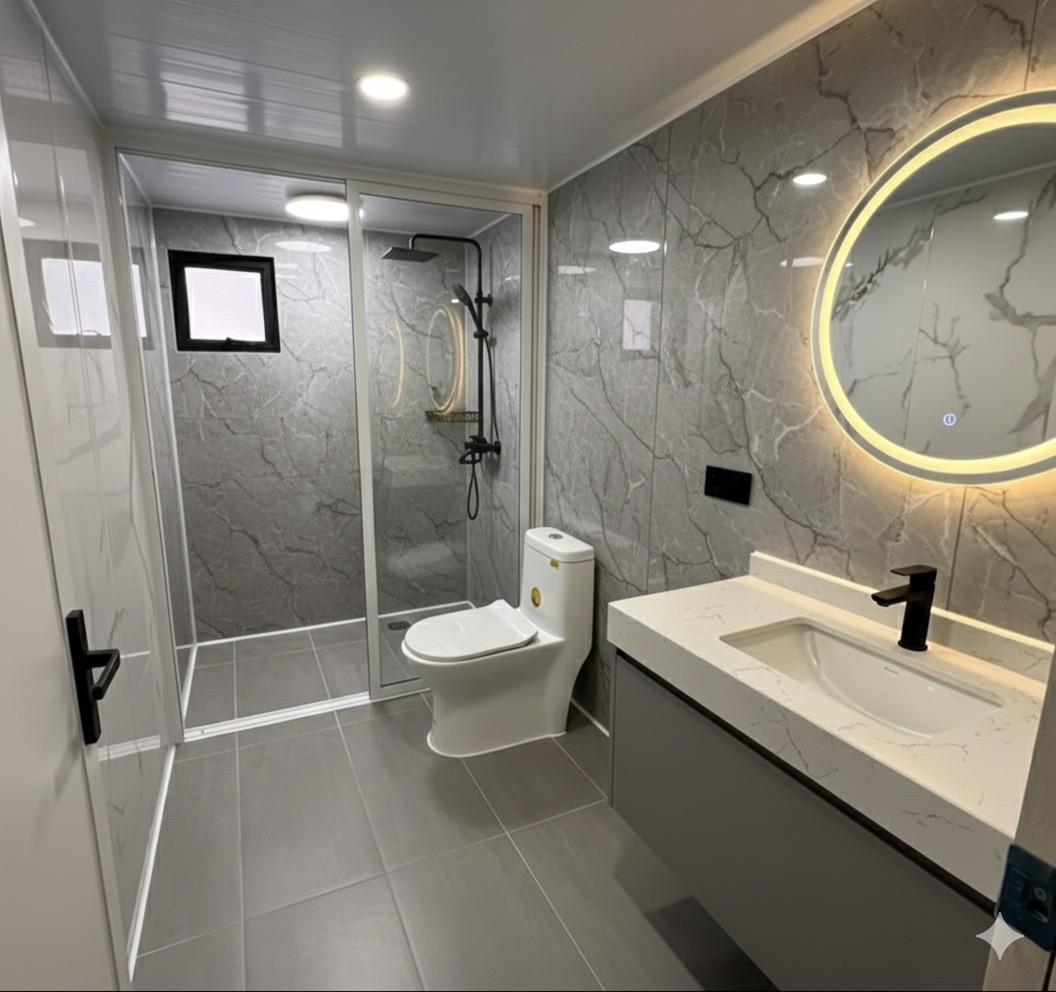

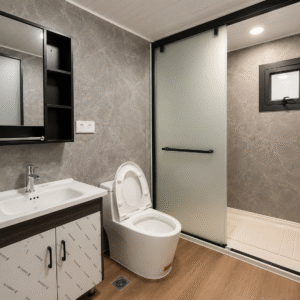

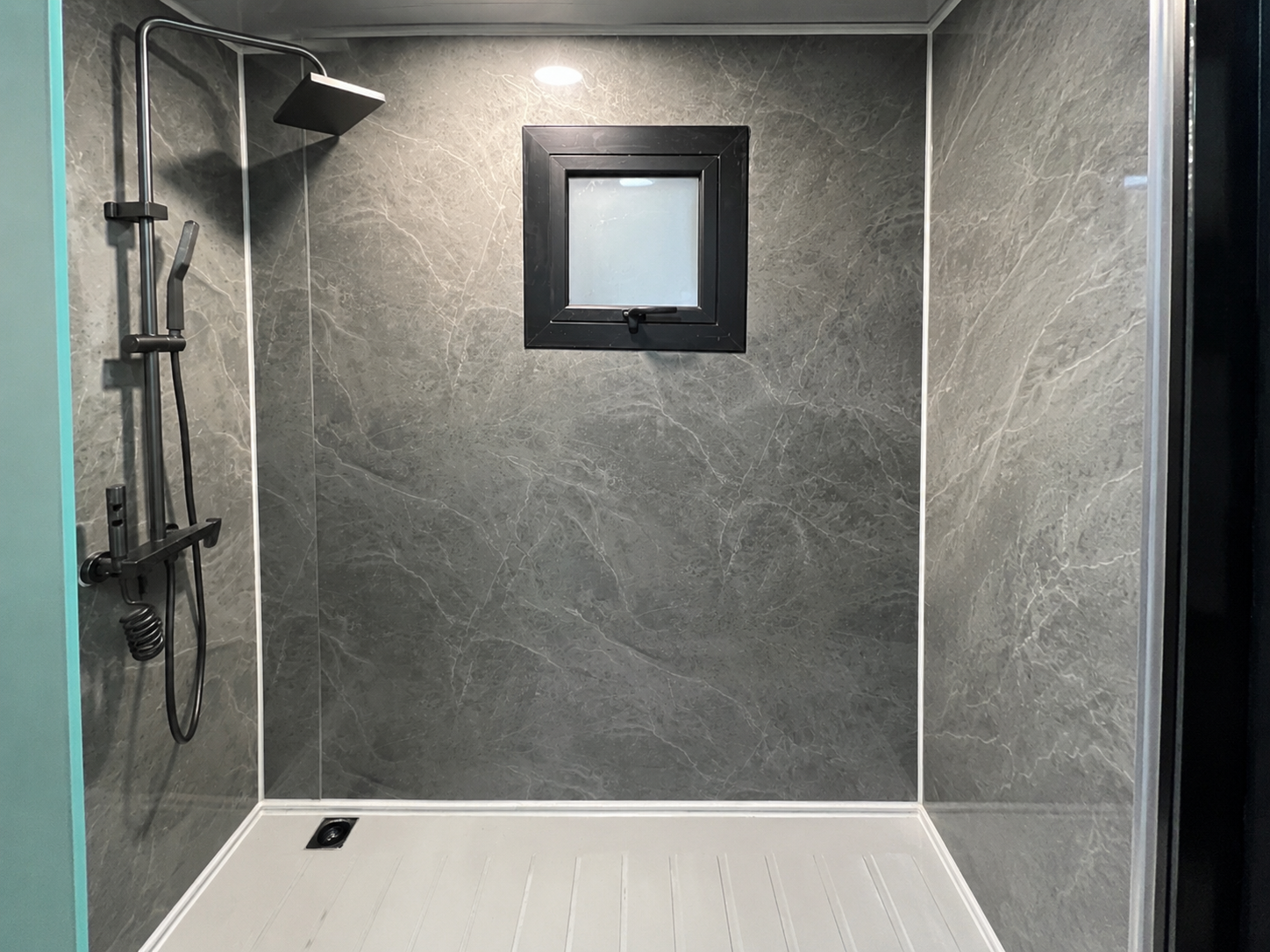

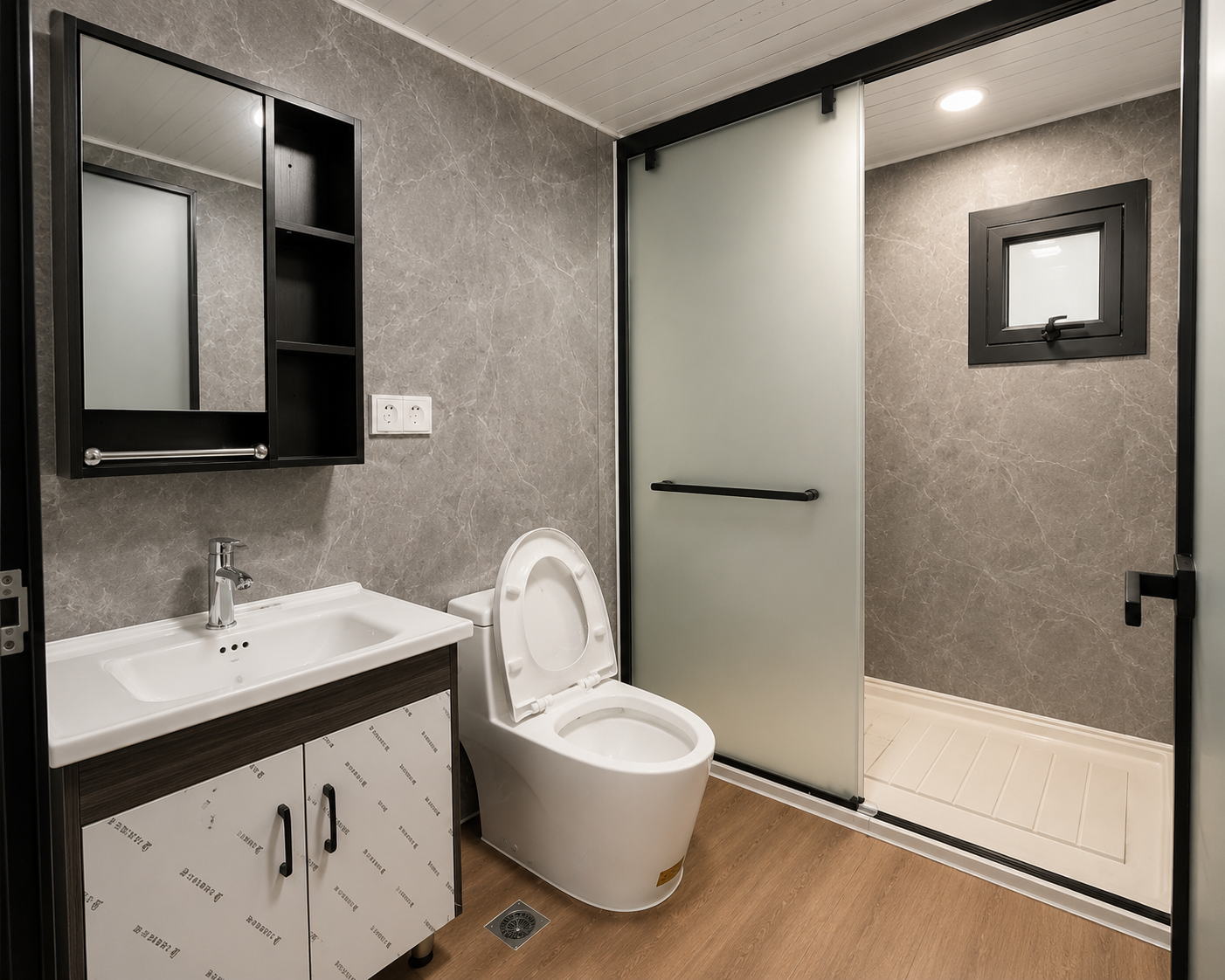

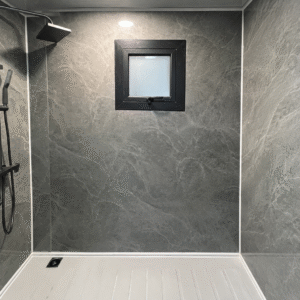

🚿 Plumbing System

• All plumbing positioned on the exterior bathroom wall for easy maintenance.

• Hot & cold pre-plumbed inlets for:

  • Kitchen sink

  • Bathroom basin

  • Toilet

  • Shower

• Separate drain pipes for wastewater and greywater.

• Pre-plumbed 50mm PVC drainage to a single outlet.

• Ready for direct connection to USA plumbing systems.

📊 Engineering Performance

• Anti-earthquake rating: Level 8

• Wind resistance: 0.6 kN/m² (up to 120 km/h)

• Load Capacity:

  • Roof (middle): 120 kg/m²

  • Roof (slope): 100 kg/m²

  • Floor: 200 kg/m²

• Snow load:

  • Middle top: 1.2 kN/m²

  • Bevel top: 1.0 kN/m²

• Thermal conductivity: 0.05 – excellent insulation efficiency.

⚠️ Delivery, Unloading & Installation

• Delivery to your location is included.

• However, unloading and on-site installation must be arranged by the customer.

• A crane, forklift, or similar lifting equipment is required to safely unload the 20FT unit.

🛒 Order Your MOB  SLATE

1. Choose your layout (1–3 bedrooms)
2. Select available finishes
3. Contact customer care for any customizations
4. Place your order
5. Delivery to your location (customer handles unloading & installation)

A complete home — delivered fast and built exactly the way you need.

📞 Custom Layouts & Upgrades

For any custom changes — including layout modifications, extra bedrooms, flooring upgrades, window options, exterior cladding, or kitchen/bathroom upgrades — you must contact customer care for approval and pricing.
All customization requests are processed through our support team to ensure correct engineering, safety, and compatibility with the expandable structure.
